Roof Edge Spoiler Overview

Roof Edge Spoiler Overview

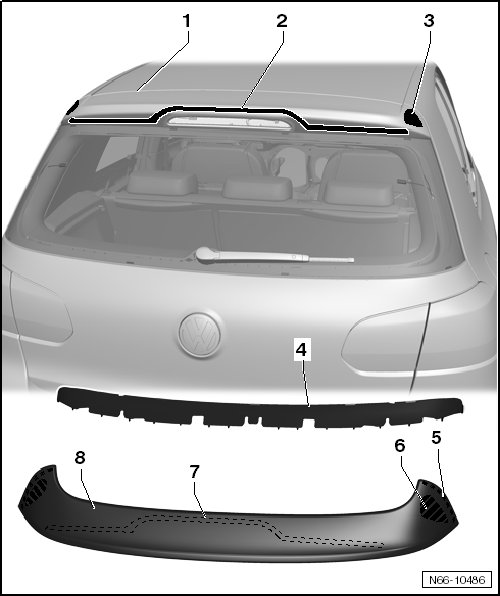

1 Rear Lid

2 Primer Surface

• For adhesive bead on retaining strip.

• Position of primer surface should be transferred from adhesive bead depression to retaining strip.

3 Primer Surface

• For adhesive bead on roof edge spoiler.

• Position of primer surface is to be transferred from roof edge spoiler.

4 Retaining Strip

• With recess for adhesive bead, bead diameter: width = 6 mm, height = 10 mm.

• Installation Information, refer to => [ Roof Edge Spoiler Installation Information ] Roof Edge Spoiler Installation Information.

5 Adhesive Tape

• Two strips for securing sides of roof edge spoiler.

6 Adhesive Surface

• Is marked in interior side of roof edge spoiler.

7 Foam Band

• Self-adhesive

• Foam band should be checked for damage and replaced if necessary before installing roof edge spoiler.

8 Roof Edge Spoiler

• Material PC/PET

• Installation Information, refer to => [ Roof Edge Spoiler Installation Information ] Roof Edge Spoiler Installation Information.
