Sunroof / Moonroof Drain: Service and Repair

Water Drain Hoses, Cleaning

Special tools, testers and auxiliary items required

• Cleaning and Pulling Tool (VAS 6620)

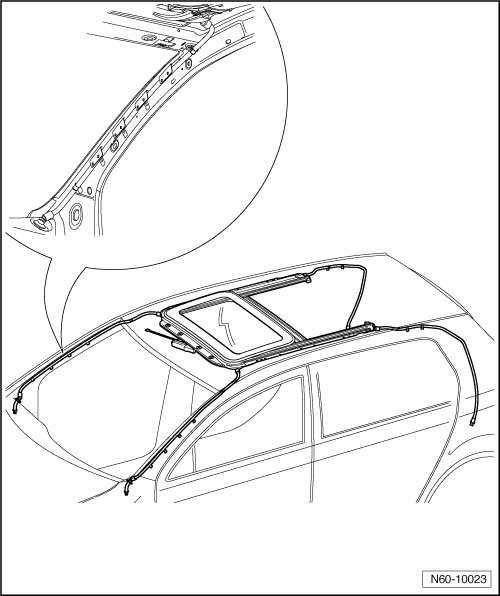

Front Water Drain Hoses






The front water drain hoses run through the A-pillars and end at the bulkhead crossmember. Cleaning is performed at cut out for sunroof.

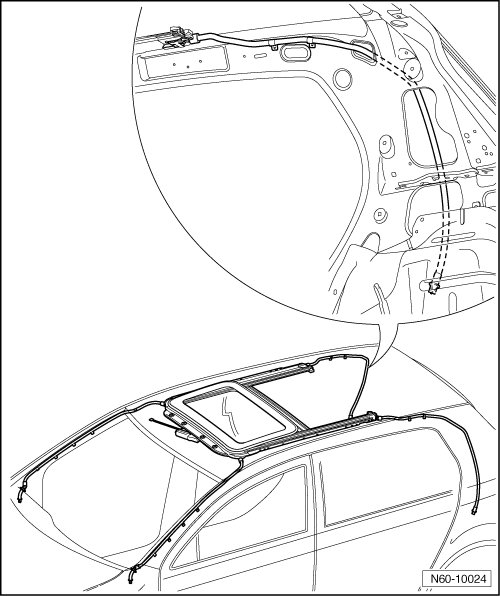

Rear Water Drain Hoses






The rear water drain hoses run through the C-pillars and end in the rear wheel housings. Cleaning is performed in the wheel housing, but the wheel housing liner must be removed.
