Passenger Assist Handle: Service and Repair

Roof Grab Handles

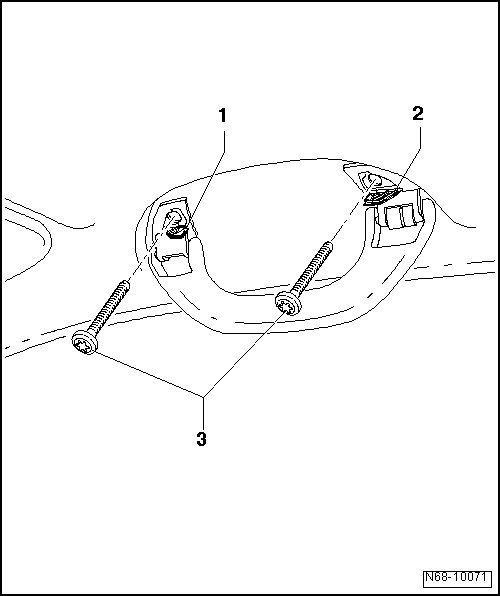

• Illustration shows the right front grab handle, removing and installing the remaining grab handles is identical.

Removing

- Swing down grab handle and open the two cover caps - 1 - and - 2 - using a small screwdriver.

- Remove two screws - 3 - (2 Nm) and remove grab handle.






Installing

- Install in reverse order of removal.
