Hood Weatherstrip: Service and Repair

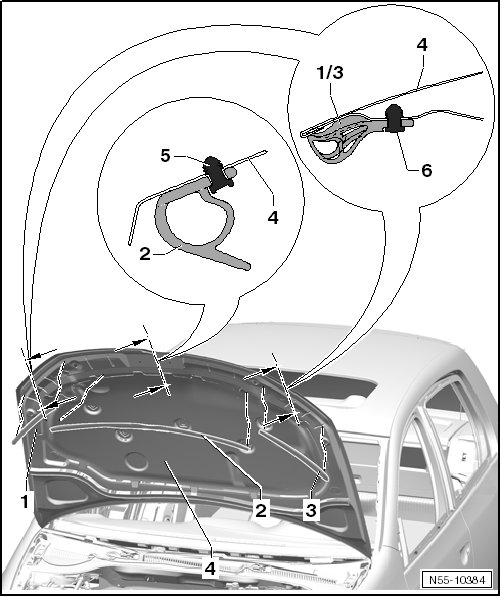

Hood Seal Overview






1 Right Seal

• Removing: pull it off the hood.

• Installing: press the clips into the hood.

2 Center Seal

• Removing: pull it off the hood.

• Installing: press the clips into the hood.

3 Left Seal

• Removing: pull it off the hood.

• Installing: press the clips into the hood.

4 Hood

5 Clip

• Check for damage before installing and replace if necessary.

6 Clip

• Check for damage before installing and replace if necessary.
