Cabin Ventilation Duct: Service and Repair

Passenger Compartment Forced Air Ventilation

Special tools, testers and auxiliary items required

• Removal Wedge (3409)

Removing

- Remove the rear bumper.

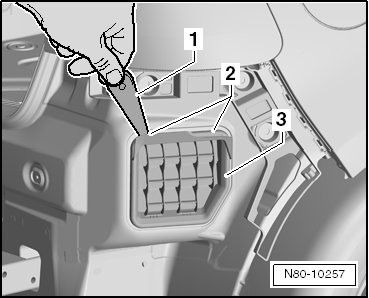

- Release the tabs - 2 - using the (3409) - 1 - and remove the vent frame - 3 - from the side panel.






Installing

- Install in reverse order of removal.
