Front Bumper Carrier Overview

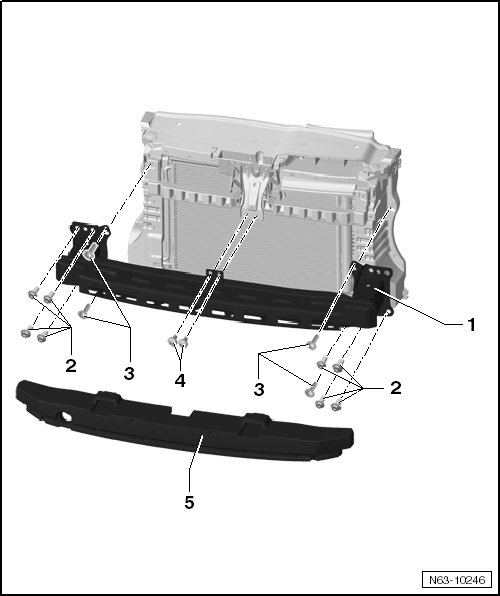

Front Bumper Carrier Overview






1 Front Bumper Carrier

2 Bolt

• Tightening specification: 60 Nm

• 4 pieces per side

3 Bolt

• Tightening specification: 8 Nm

• 2 pieces per side

4 Bolt

• Tightening specification: 8 Nm

• Quantity: 2

5 Foam Piece
