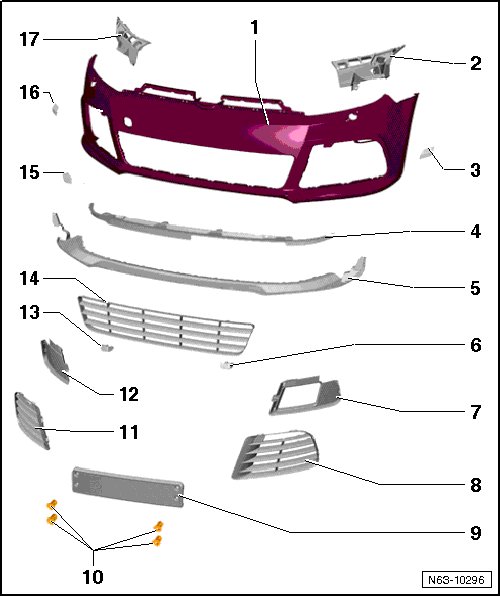

Bumper Cover Attachments

Bumper Cover Attachments






1 Front Bumper Cover

• PP/EPDM material

• Removing, refer to => [ Front Bumper Cover ] Front Bumper Cover.

• Installing, refer to => [ Installing ] Front Bumper Cover.

2 Support Piece

• Left for the headlamp washer system.

• Removing and installing, refer to => [ Support ] Support.

3 Cover

• For the headlamp washer system.

4 Spoiler Bracket

• Remove only when bumper cover - 1 - has been removed.

5 Spoiler

• Remove only when bumper cover - 1 - has been removed.

6 Parking Aid Sensor

• Left

• Not applicable to the NAR market.

7 End Plate

• Left

• Remove only when bumper cover - 1 - has been removed.

8 Vent Grille

• Left

• Remove only when bumper cover - 1 - has been removed.

9 License Plate Holder

• There are different sizes for different markets

• Installing, refer to => [ License Plate Holder ] License Plate Holder.

10 Clips

• Quantity: 4

11 Vent Grille

• Right

• Remove only when bumper cover - 1 - has been removed.

12 End Plate

• Right

• Remove only when bumper cover - 1 - has been removed.

13 Parking Aid Sensor

• Right

• Not applicable to the NAR market.

14 Center Vent Grille

• Remove only when bumper cover - 1 - has been removed.

• Engage in the front bumper cover - 1 -.

• Is also attached with 2 left and right metal clips.

15 Towing Eyelet Cap

• Engage in the front bumper cover - 1 -.

16 Cover

• For the headlamp washer system.

17 Support Piece

• Right for the headlamp washer system.

• Removing and installing, refer to => [ Support ] Support.
