Door Trim Panels, Golf From MY 09, Front Speaker Trim

Front Speaker Trim

• Removal and installation is described for the right side of the vehicle. Removing and installing on the left side is identical.

Removing

- Switch off ignition.

- Remove front door trim:

• 2-door vehicles: => [ Front Door Trim Panel, 2-door Vehicles ] Front Door Trim Panel, 2-Door Vehicles

• 4-door vehicles: => [ Front Door Trim Panel, 4-door Vehicles ] Front Door Trim Panel, 4-Door Vehicles

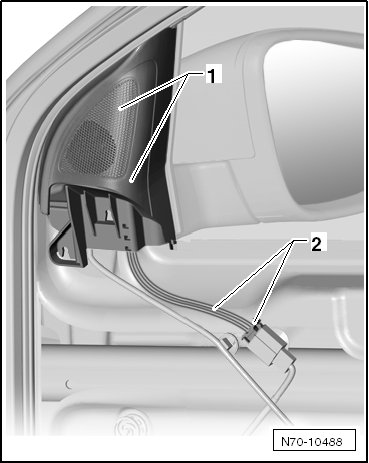

- Remove the door trim panel cover - 1 - from the mounts in the door inner panel.






- Disconnect wiring harness - 2 -.

Installing

- Install in reverse order of removal.

• Check the clips for damage and replace if necessary.
