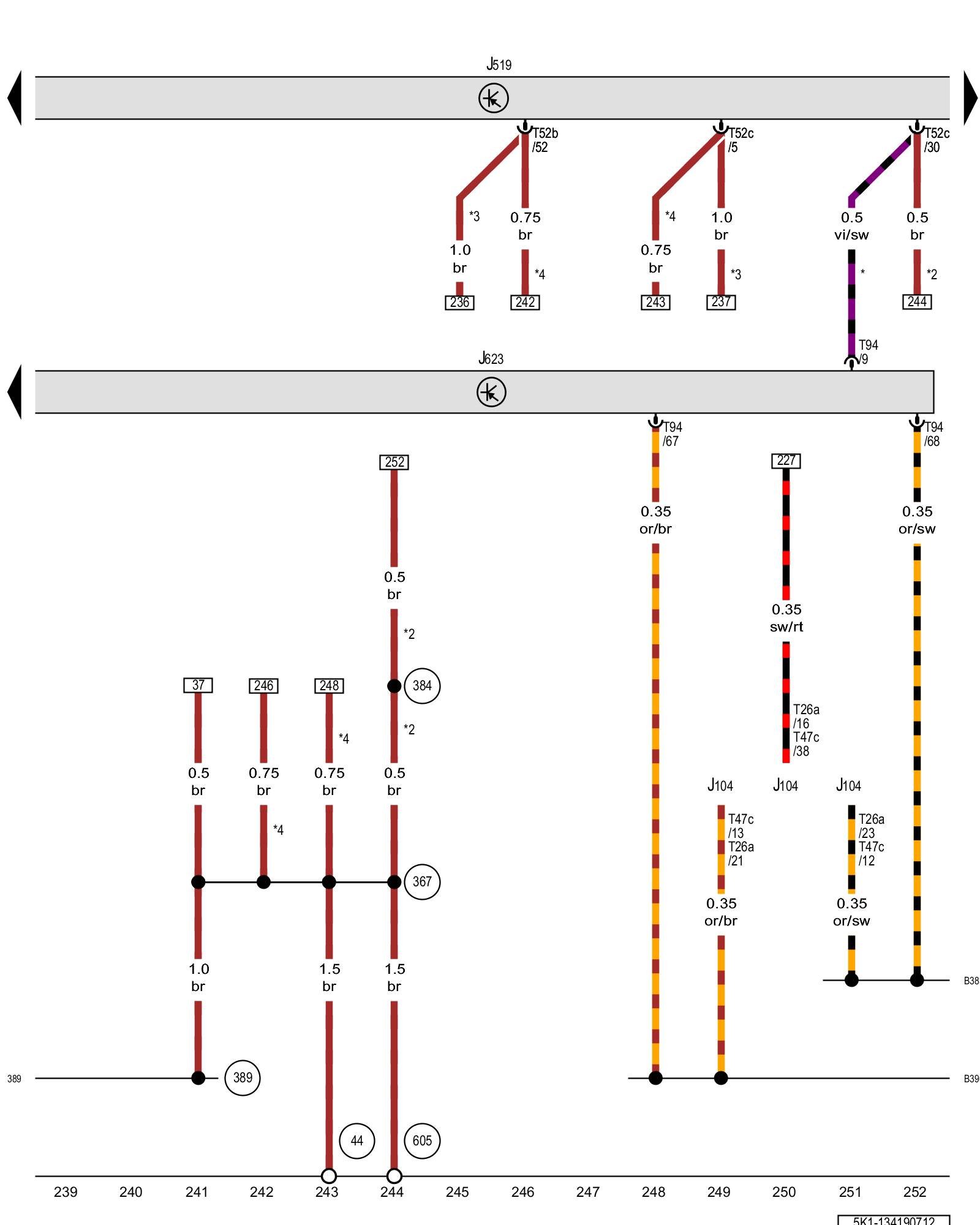

Diagram 134/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS control module Control modules in front part of vehicle - Overview of Control Modules [1][2]Diagrams

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J623 - Engine control module, in the center plenum chamber Control modules in front part of vehicle - Overview of Control Modules

T26a - 26-pin connector

T47c - 47-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

T94 - 94-pin connector

(44) - Ground connection on A-pillar, lower left Overview Of Ground Connections in Interior

(367) - Ground connection 2 (in main wiring harness)

(384) - Ground connection 19 (in main wiring harness)

(389) - Ground connection 24 (in main wiring harness)

(605) - Ground connection on upper steering column Overview Of Ground Connections in Interior

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

* - Only for vehicles without access/start authorization system

*2 - only for vehicles with access/start authorization system

*3 - Only for right-hand drive vehicles

*4 - Only for left-hand drive vehicles
