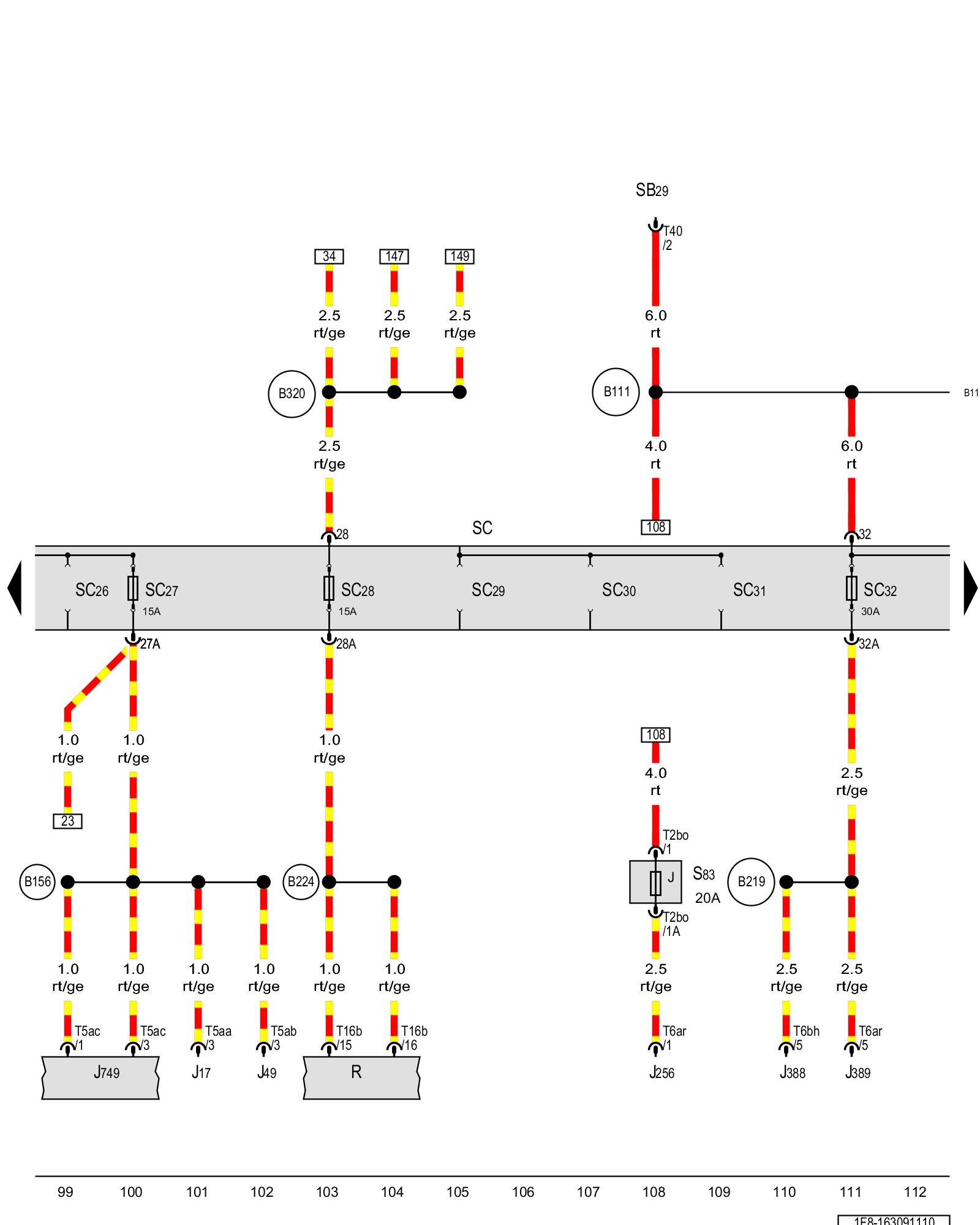

Diagram 163/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J17 - Fuel pump relay Overview Of Relay Carrier

J49 - Fuel pump relay 2 Overview Of Relay Carrier

J256 - Convertible top control module Convertible Top System Overview [1][2]Convertible Top Control Module

J388 - Left rear door control module Locations

J389 - Right rear door control module Overview Of Control Modules

J749 - Auxiliary heater fuel pump relay

R - Radio Locations Component Locations

SB29 - Fuse 29 (on fuse panel B) Overview Of Fuses

S83 - Sunroof circuit breaker Overview Of Fuses

SC - Fuse panel C Overview Of Fuses

SC26 - Fuse 26 (on fuse panel C) Overview Of Fuses

SC27 - Fuse 27 (on fuse panel C) Overview Of Fuses

SC28 - Fuse 28 (on fuse panel C) Overview Of Fuses

SC29 - Fuse 29 (on fuse panel C) Overview Of Fuses

SC30 - Fuse 30 (on fuse panel C) Overview Of Fuses

SC31 - Fuse 31 (on fuse panel C) Overview Of Fuses

SC32 - Fuse 32 (on fuse panel C) Overview Of Fuses

T2bo - Double connector

T5aa - 5-pin connector

T5ab - 5-pin connector

T5ac - 5-pin connector

T6ar - 6-pin connector

T6bh - 6-pin connector

T16b - 16-pin connector

T40 - 40-pin connector

(B111) - Positive connection 1 (30a) (in interior wiring harness)

(B156) - Positive connection (30a) (in interior wiring harness)

(B219) - Positive connection 4 (30a) (in interior wiring harness)

(B224) - Radio connection 1 (in interior wiring harness)

(B320) - Positive connection 6 (30a) (in main wiring harness)
