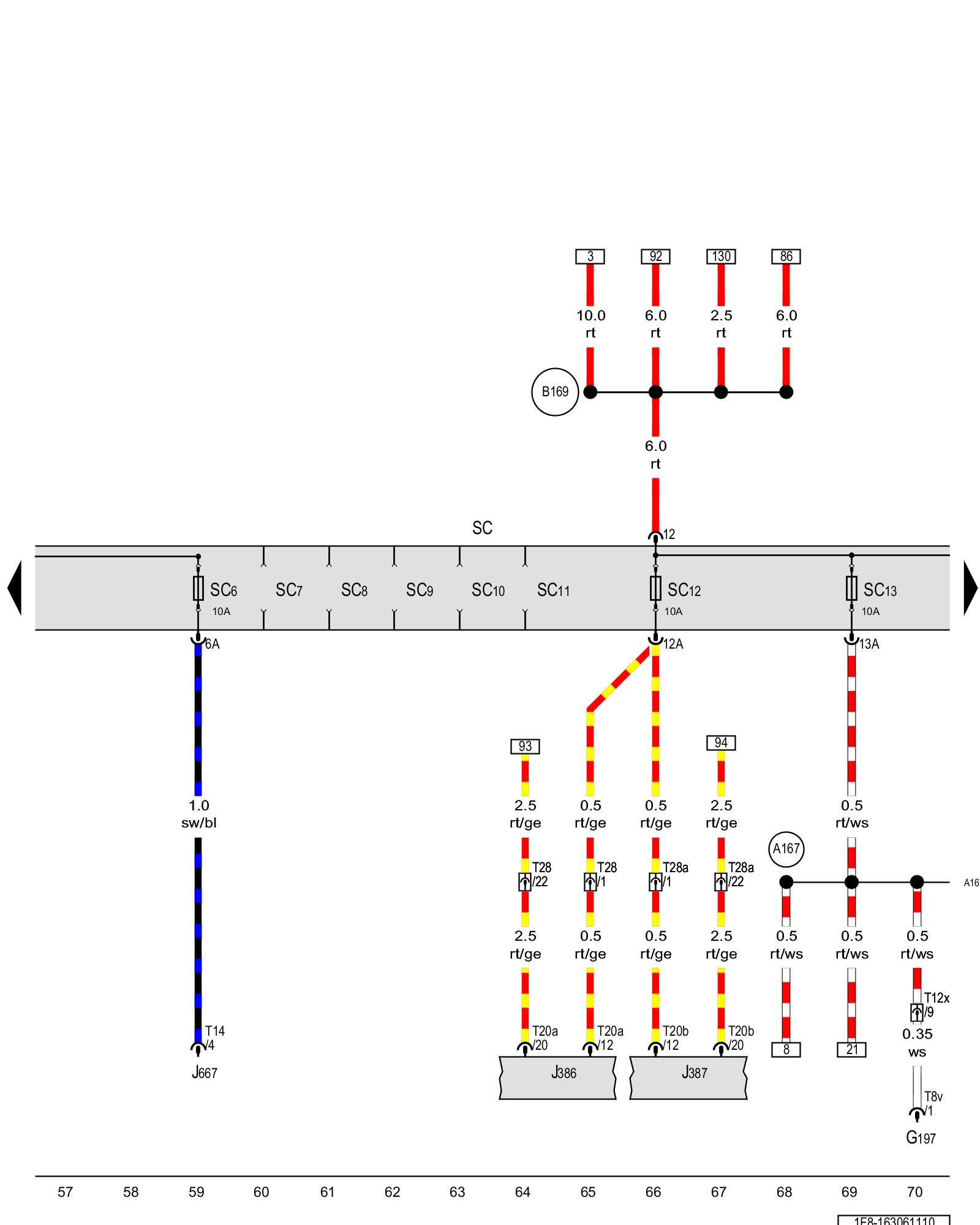

Diagram 163/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G197 - Compass magnetic field sensor Antenna Systems Overview

J386 - Driver door control module Locations Driver Door Control Module -J386-

J387 - Front passenger door control module Overview Of Control Modules Front Pass Door Control Module -J387-

J667 - Left headlamp power output stage Control modules in front part of vehicle - Overview of Control Modules

SC - Fuse panel C Overview Of Fuses

SC6 - Fuse 6 (on fuse panel C) Overview Of Fuses

SC7 - Fuse 7 (on fuse panel C) Overview Of Fuses

SC8 - Fuse 8 (on fuse panel C) Overview Of Fuses

SC9 - Fuse 9 (on fuse panel C) Overview Of Fuses

SC10 - Fuse 10 (on fuse panel C) Overview Of Fuses

SC11 - Fuse 11 (on fuse panel C) Overview Of Fuses

SC12 - Fuse 12 (on fuse panel C) Overview Of Fuses

SC13 - Fuse 13 (on fuse panel C) Overview Of Fuses

T8v - 8-pin connector

T12x - 12-pin connector Overview Of Connector Stations and Connectors

T14 - 14-pin connector

T20a - 20-pin connector

T20b - 20-pin connector

T28 - 28-pin connector

T28a - 28-pin connector

(A167) - Positive connection 3 (30a) (in instrument panel wiring harness)

(B169) - Positive connection 1 (30) (in interior wiring harness)
