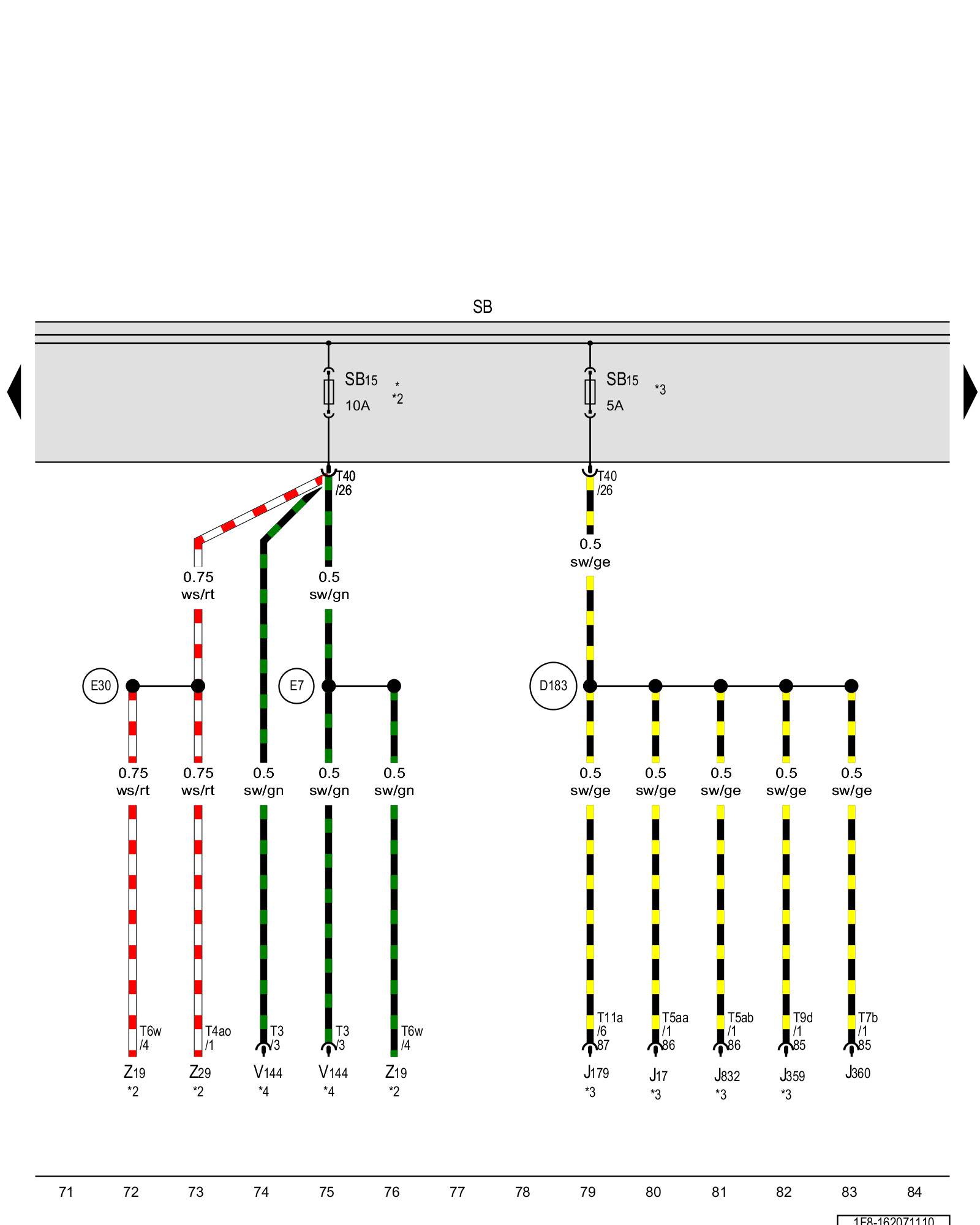

Diagram 162/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J17 - Fuel pump relay Overview Of Relay Carrier

J179 - Automatic glow time control module Overview Of Relay Carrier

J359 - Low heat output relay Overview Of Relay Carrier

J360 - High heat output relay Overview Of Relay Carrier

J832 - Auxiliary fuel pump relay

SB - Fuse panel B Overview Of Fuses

SB15 - Fuse 15 (on fuse panel B) Overview Of Fuses

T3 - 3-pin connector

T4ao - 4-pin connector

T5aa - 5-pin connector

T5ab - 5-pin connector

T6w - 6-pin connector

T7b - 7-pin connector

T9d - 9-pin connector

T11a - 11-pin connector

T40 - 40-pin connector

V144 - Leak detection pump Locations

Z19 - Oxygen sensor heater

Z29 - Heater for oxygen sensor 1 after catalytic converter

(D183) - Connection 4 (87a) (in engine compartment wiring harness)

(E7) - Connection (87a) (in Motronic multiport fuel injection wiring harness)

(E30) - Connection (87a) (in engine wiring harness)

* - Only for vehicles with gasoline engine

*2 - Refer to applicable engine wiring diagram

*3 - Only for vehicles with diesel engines

*4 - Depending on equipment
