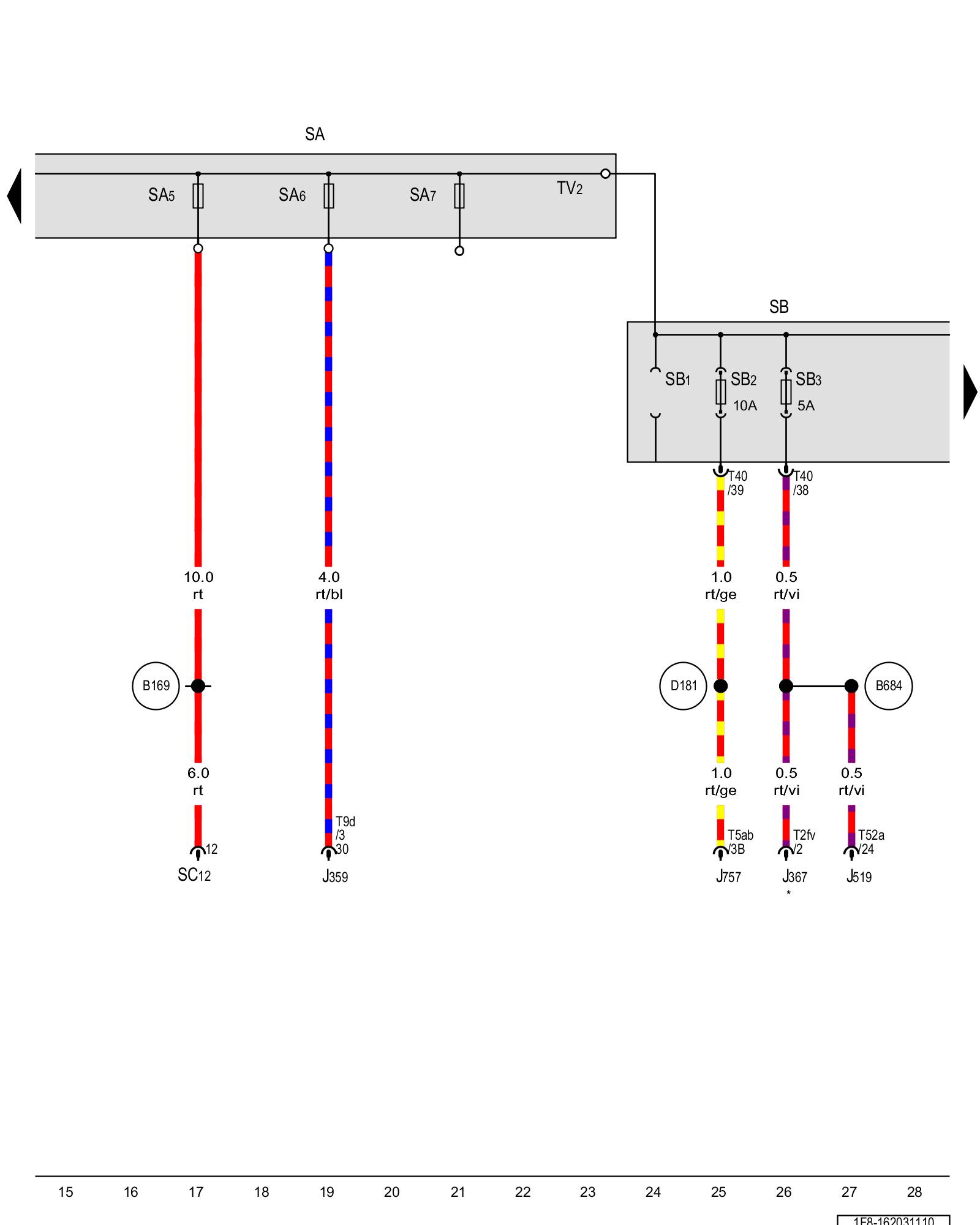

Diagram 162/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel A, Fuse panel B, Terminal 30 wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J359 - Low heat output relay Overview Of Relay Carrier

J367 - Battery monitoring control module

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J757 - Engine component power supply relay Overview Of Relay Carrier

SA - Fuse panel A Overview Of Fuses

SB1 - Fuse 1 (on fuse panel B) Overview Of Fuses

SB2 - Fuse 2 (on fuse panel B) Overview Of Fuses

SB3 - Fuse 3 (on fuse panel B) Overview Of Fuses

SA5 - Fuse 5 (on fuse panel A) Overview Of Fuses

SA6 - Fuse 6 (on fuse panel A) Overview Of Fuses

SA7 - Fuse 7 (on fuse panel A) Overview Of Fuses

SB - Fuse panel B Overview Of Fuses

SC12 - Fuse 12 (on fuse panel C) Overview Of Fuses

T2fv - Double connector

T5ab - 5-pin connector

T9d - 9-pin connector

TV2 - Terminal 30 wire junction

T40 - 40-pin connector

T52a - 52-pin connector

(B169) - Positive connection 1 (30) (in interior wiring harness)

(B684) - Positive connection 24 (30a) (in main wiring harness)

(D181) - Connection 2 (87a) (in engine compartment wiring harness)

* - Only for vehicles with Start/Stop system

Previous Diagram 162/2 (Tracks 1-14)

Next Diagram 162/4 (Tracks 29-42)
