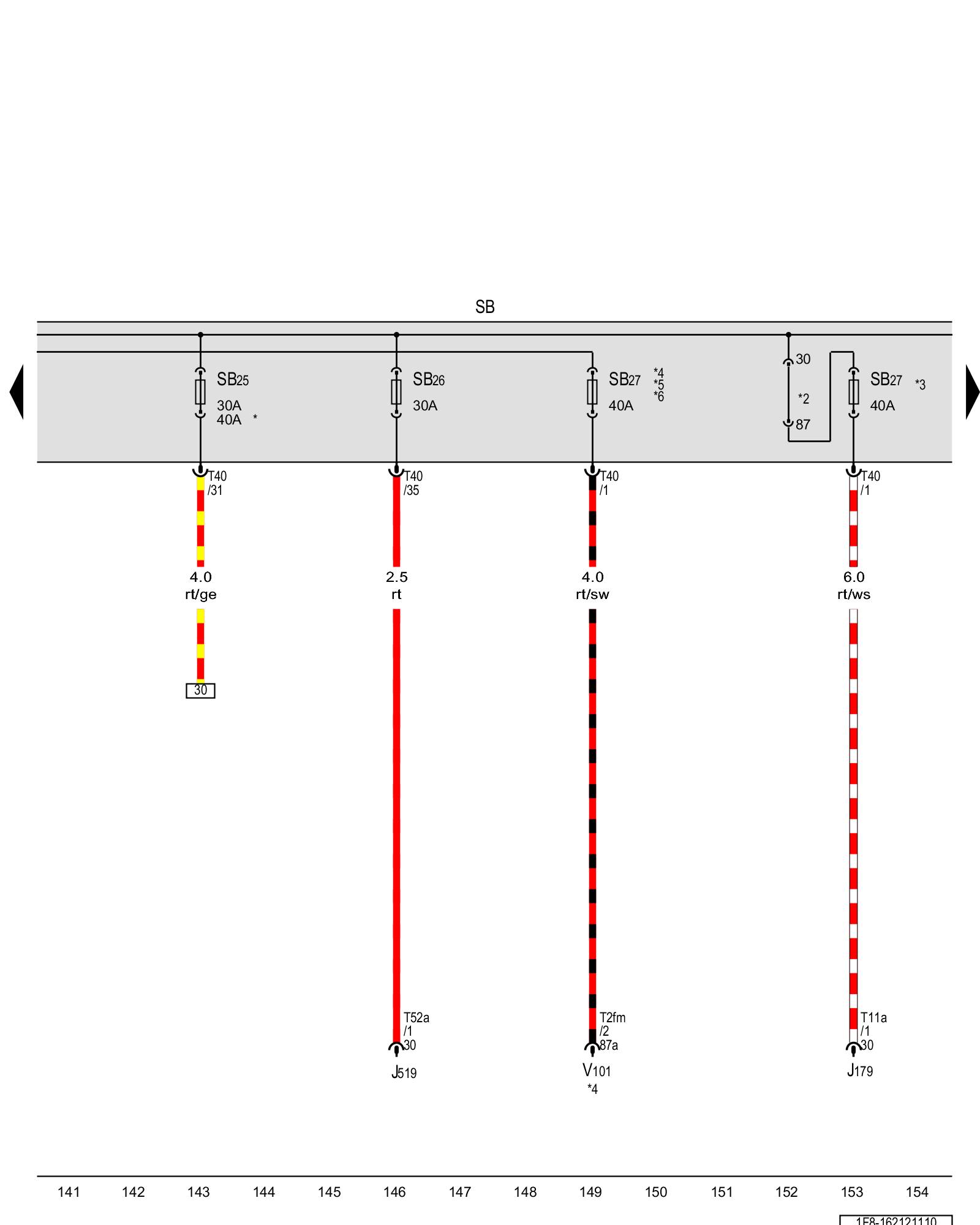

Diagram 162/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J179 - Automatic glow time control module Overview Of Relay Carrier

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

SB - Fuse panel B Overview Of Fuses

SB25 - Fuse 25 (on fuse panel B) Overview Of Fuses

SB26 - Fuse 26 (on fuse panel B) Overview Of Fuses

SB27 - Fuse 27 (on fuse panel B) Overview Of Fuses

T2fm - Double connector

T11a - 11-pin connector

T40 - 40-pin connector

T52a - 52-pin connector

V101 - Secondary air injection pump motor Locations

* - Depending on equipment

*2 - Contact bridge, only vehicles with diesel engine

*3 - Only for vehicles with diesel engines

*4 - Refer to applicable engine wiring diagram

*5 - Only for vehicles with 2.0L engine

*6 - Only for vehicles with gasoline engine
