Brake Lamp Switch, Previous Version

Brake Lamp Switch, Previous Version

Includes Brake Pedal Switch (F47)

On vehicles from CW 45/05, brake light switch is located on brake master cylinder, refer to => [ Brake Booster and Master Cylinder Overview ] Brake Booster and Master Cylinder Overview.

Brake Lamp Switch, Previous Version

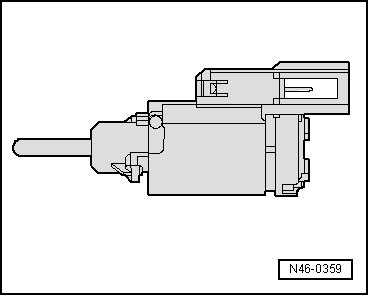

• After removing the old brake light switch (see illustration N46-0359) it should be replaced with a new one (see illustration N46-10145).

• Distinguishing characteristics, see => [ ] Brake Lamp Switch, New Version.






Removing

- Remove trim on driver side.

- If necessary, remove the footwell vents.

- Disconnect connector from brake light switch.

The brake lamp switch must only be removed when plunger is pressed (brake pedal not operated), otherwise the retainer on the brake light switch will be damaged.

- Remove brake light switch by turning 45° to left.

Installing, Adjusting and Locking

Because the old brake lamp switch is no longer used, there is no description here.
