Convertible Top Switch: Diagrams






Convertible Top System

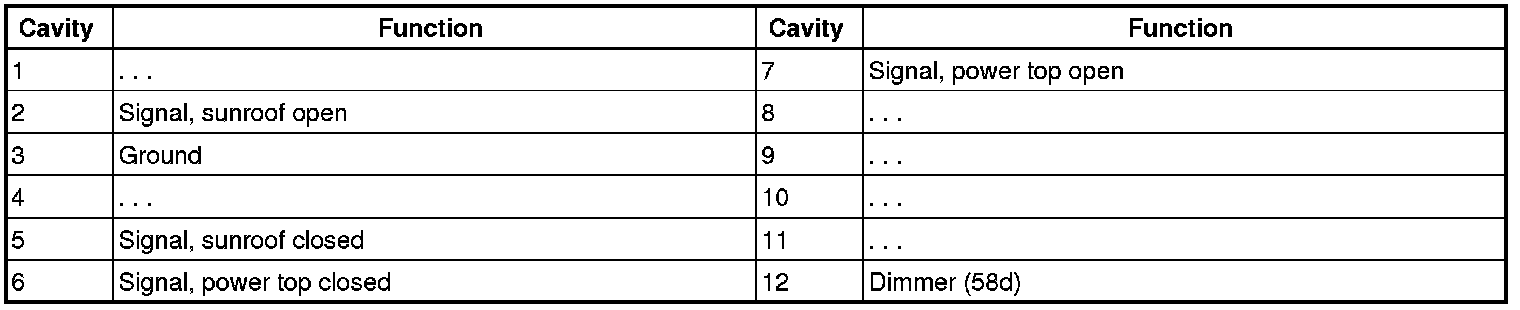

Power top operation switch -E137- / Sunroof button -E325-
