Vehicle Diagnosis Tester, Connecting, Golf MY 98 Through MY 03

Vehicle Diagnosis Tester, Connecting, Golf MY 98 Through MY 03

- Apply the parking brake.

- In vehicles with automatic transmission, move the selector lever to the "P" or "N" position.

- In vehicles with manual transmissions, move the shift lever to the neutral position.

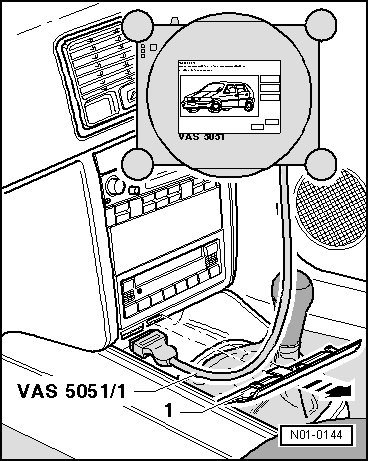

- Remove trim - 1 - in direction of arrow.

- With the ignition switched off, connect the Vehicle Diagnostic Tester with the diagnostic cable to the data link connector in the vehicle - arrow -.






- Switch on ignition.

- Turn off all electrical consumers.

• The connection of all other and the following diagnostic operation system or vehicle diagnosis and service system occurs in the previously described sequence.
