Rear Lid Tail Lamp Bulb

Rear Lid Tail Lamp Bulb

Removal

- Switch off the ignition and all electrical consumers and remove the ignition key.

- Unclip the service cover - 1 - from the rear lid trim.

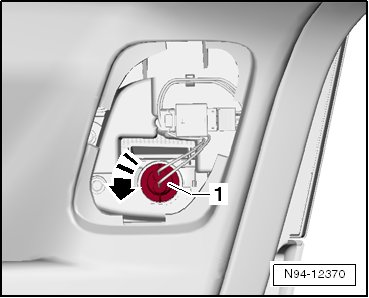

- Turn the lamp socket - 1 - in the - direction of the arrow - and pull out of the tail lamp housing.






- Pull the wedge-base bulb - 1 - in the - direction of the arrow - out of the socket - 2 -.






Tail lamp bulb: bulb 12V, W16W

Installation

Install in reverse order of removal.

- After installation, check the tail lamp functions.
