Turn Signal Bulb (M5)/(M7)

Turn Signal Bulb (M5)/(M7)

• The left front turn signal bulb (M5) and right front turn signal bulb (M7) can be checked via the output diagnostic test mode of the Vehicle electrical system control module (J519).

• The figures show bulb replacement in the right front turn signal bulb.

• Bulb replacement in the left front turn signal bulb is identical.

• For reasons of clarity, the following figures show the headlamp in the uninstalled state. It is not necessary to remove the headlamp when replacing the headlamp bulb.

Removal

- Switch off the ignition and all electrical consumers and remove the ignition key.

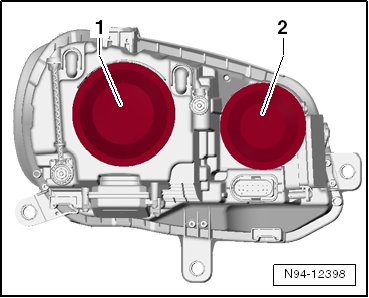

- Remove the cap - 2 - from the headlamp housing.

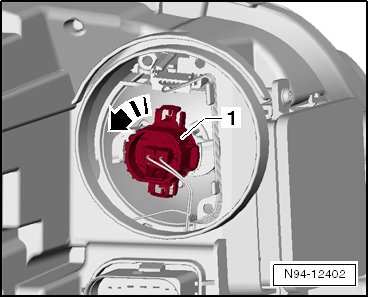

- Turn the handle - 1 - to the left in the - direction of the arrow - and remove together with the turn signal bulb from the headlamp.

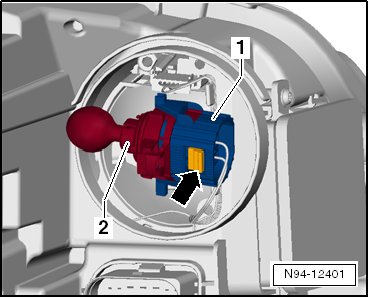

- Press the button - arrow - on the handle and pull the turn signal bulb - 2 - straight out of the handle - 1 -.






Front turn signal lamp: 12V, PSY24W

Installation

During installation, ensure proper seating of the cap. It is destroyed by entry of water into headlamp.

Installation is performed in the reverse order of removal. Note the following:
