Front Passenger Airbag -Disabled- Indicator Lamp (K145)

Front Passenger Airbag -Disabled- Indicator Lamp (K145)

Removal

- Switch off the ignition and all electrical consumers and remove the ignition key.

- Remove the center vents.

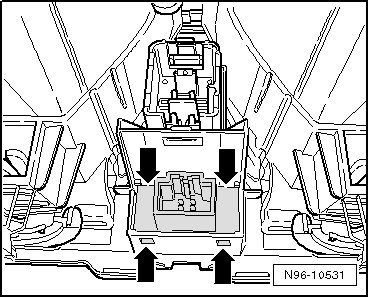

- Disconnect the connectors - arrows -.






- Open the retaining tabs - arrows - and remove the indicator lamp.






Installation

Installation is performed in the reverse order of removal.
