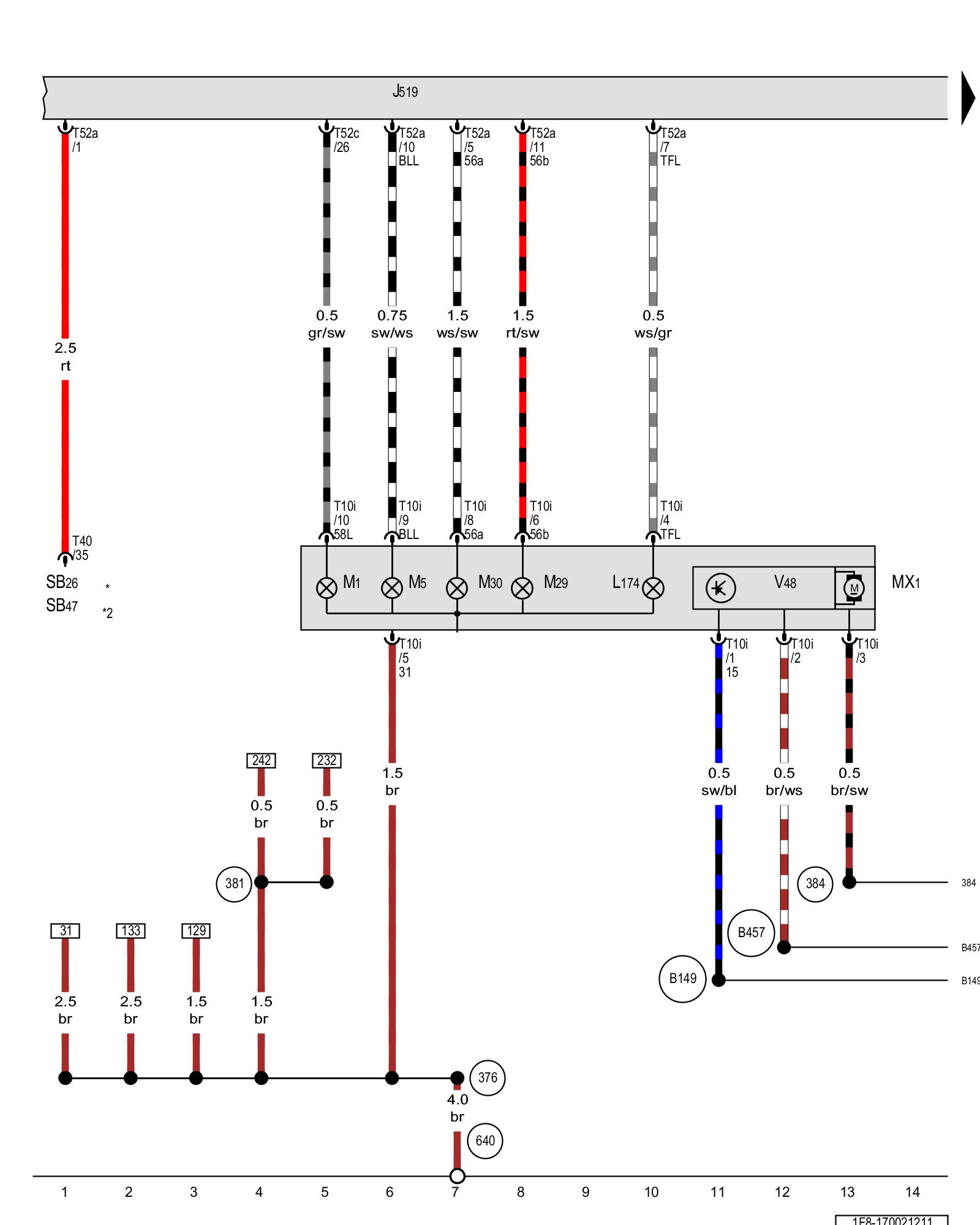

Diagram 170/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Left side marker lamp bulb, Left front turn signal bulb, Left low beam headlamp bulb, Left headlamp beam adjustment motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

L174 - Left daytime running lamp bulb

MX1 - Left front headlamp

M1 - Left side marker lamp bulb

M5 - Left front turn signal bulb

M29 - Left low beam headlamp bulb

M30 - Left high beam headlamp bulb

SB26 - Fuse 26 (on fuse panel B) Overview Of Fuses

SB47 - Fuse 47 (on fuse panel B) Overview Of Fuses

T10i - 10-pin connector

T40 - 40-pin connector

T52a - 52-pin connector

T52c - 52-pin connector

V48 - Left headlamp beam adjustment motor

(376) - Ground connection 11 (in main wiring harness)

(381) - Ground connection 16 (in main wiring harness)

(384) - Ground connection 19 (in main wiring harness)

(640) - Ground connection 2 in engine compartment, left Overview Of Ground Connections in Engine Compartment

(B149) - Positive connection 2 (15a) (in interior wiring harness)

(B457) - Position sensor connection 1 (in main wiring harness)

* - Fuses in the E-box, Low

*2 - Fuses in the E-box, High

Next Diagram 170/3 (Tracks 15-28)
