Diagram 174/6 (Tracks 57-70)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

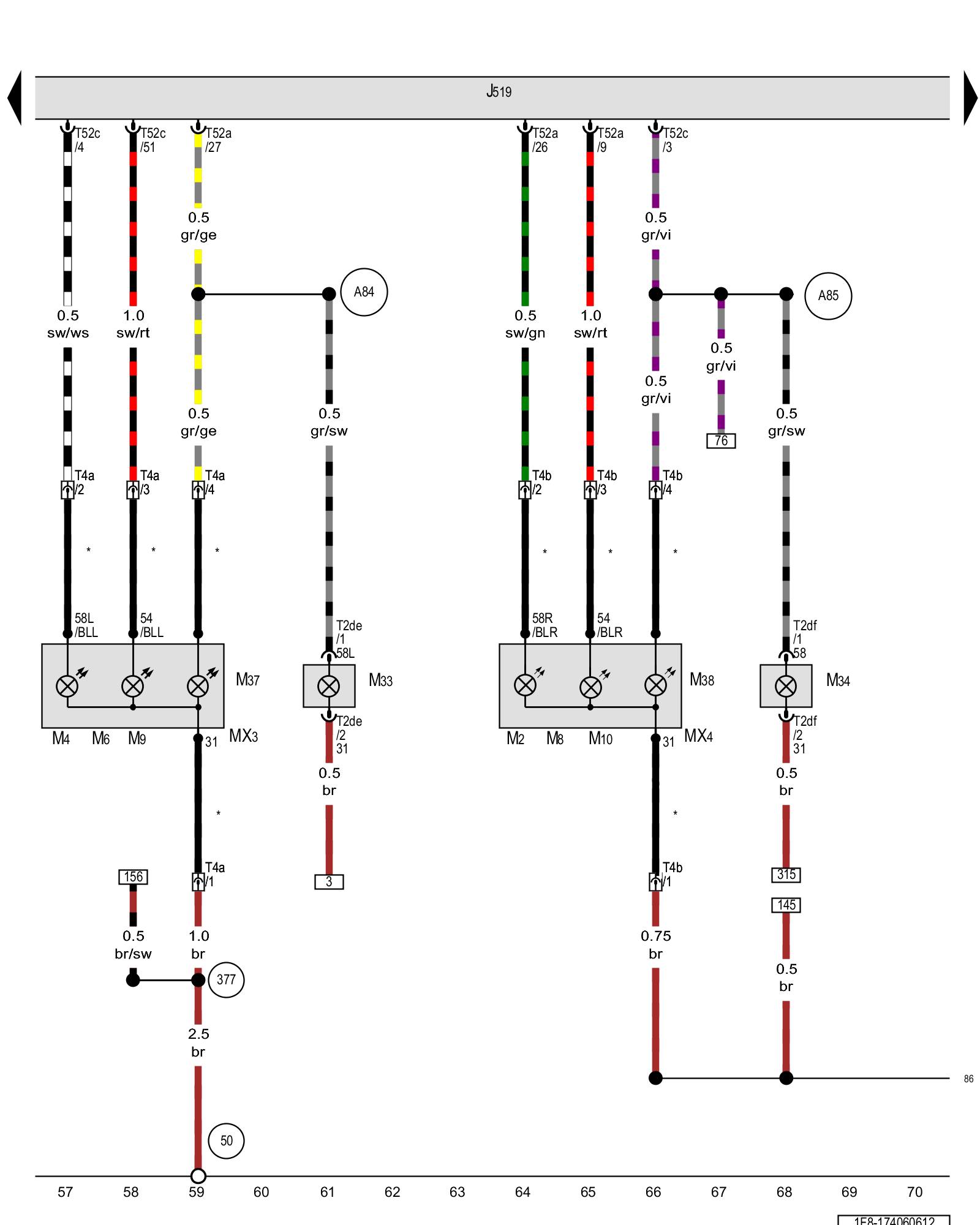

Vehicle electrical system control module, Left tail lamp bulb, Left rear turn signal bulb, Right rear turn signal bulb, Left brake lamp bulb, Right brake lamp bulb, Left front side marker lamp bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

M2 - Right tail lamp bulb

MX3 - Left tail lamp

M4 - Left tail lamp bulb

MX4 - Right tail lamp

M6 - Left rear turn signal bulb

M8 - Right rear turn signal bulb

M9 - Left brake lamp bulb

M10 - Right brake lamp bulb

M33 - Left front side marker lamp bulb

M34 - Right front side marker lamp bulb

M37 - Left rear side marker lamp bulb

M38 - Right rear side marker lamp bulb

T2de - Double connector

T2df - Double connector

T4a - 4-pin connector, in the luggage compartment, left rear Overview Of Connector Stations and Connectors

T4b - 4-pin connector, in the luggage compartment, right rear

T52a - 52-pin connector

T52c - 52-pin connector

(50) - Ground connection in luggage compartment, left Overview Of Ground Connections in Luggage Comp.

(86) - Ground connection 1 (in rear wiring harness)

(377) - Ground connection 12 (in main wiring harness)

(A84) - Connection 58L (in instrument panel wiring harness)

(A85) - Connection 58R (in instrument panel wiring harness)

* - Adapter cable

Previous Diagram 174/5 (Tracks 43-56)

Next Diagram 174/7 (Tracks 71-84)
