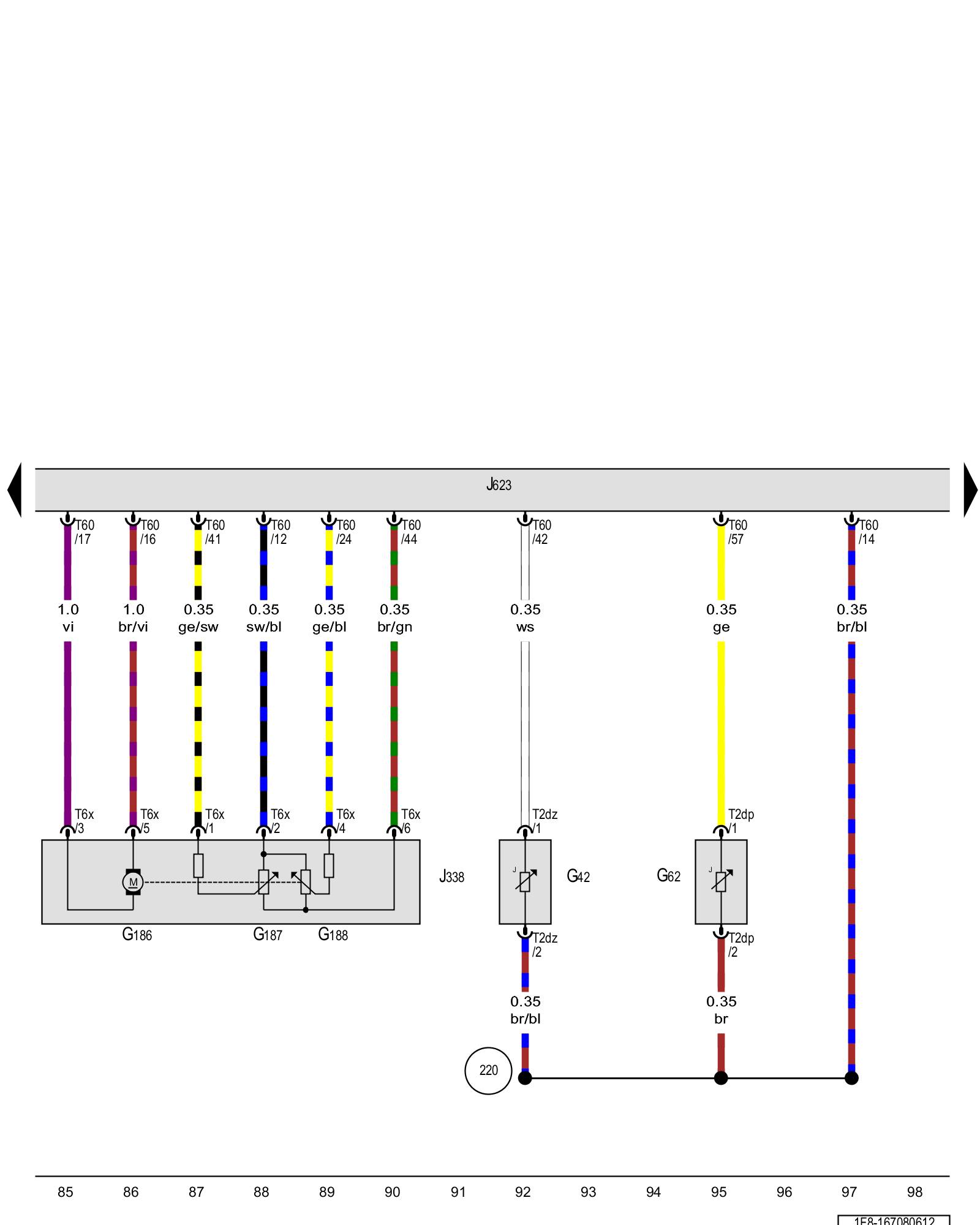

Diagram 167/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Intake air temperature sensor, Engine coolant temperature sensor, EPC throttle drive, EPC throttle drive angle sensor 1, EPC throttle drive angle sensor 2, Throttle valve control module, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G42 - Intake air temperature sensor Locations Diagrams

G62 - Engine coolant temperature sensor Locations Engine Coolant Temperature Sensor -G62-

G186 - EPC throttle drive 2.0L CCTA, CBFA and BPY Overviews Diagrams

G187 - EPC throttle drive angle sensor 1 2.0L CCTA, CBFA and BPY Overviews Diagrams

G188 - EPC throttle drive angle sensor 2 2.0L CCTA, CBFA and BPY Overviews Diagrams

J338 - Throttle valve control module Locations Diagrams

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

T2dp - Double connector

T2dz - Double connector

T6x - 6-pin connector

T60 - 60-pin connector

(220) - Sensor ground connection (in engine compartment wiring harness)
