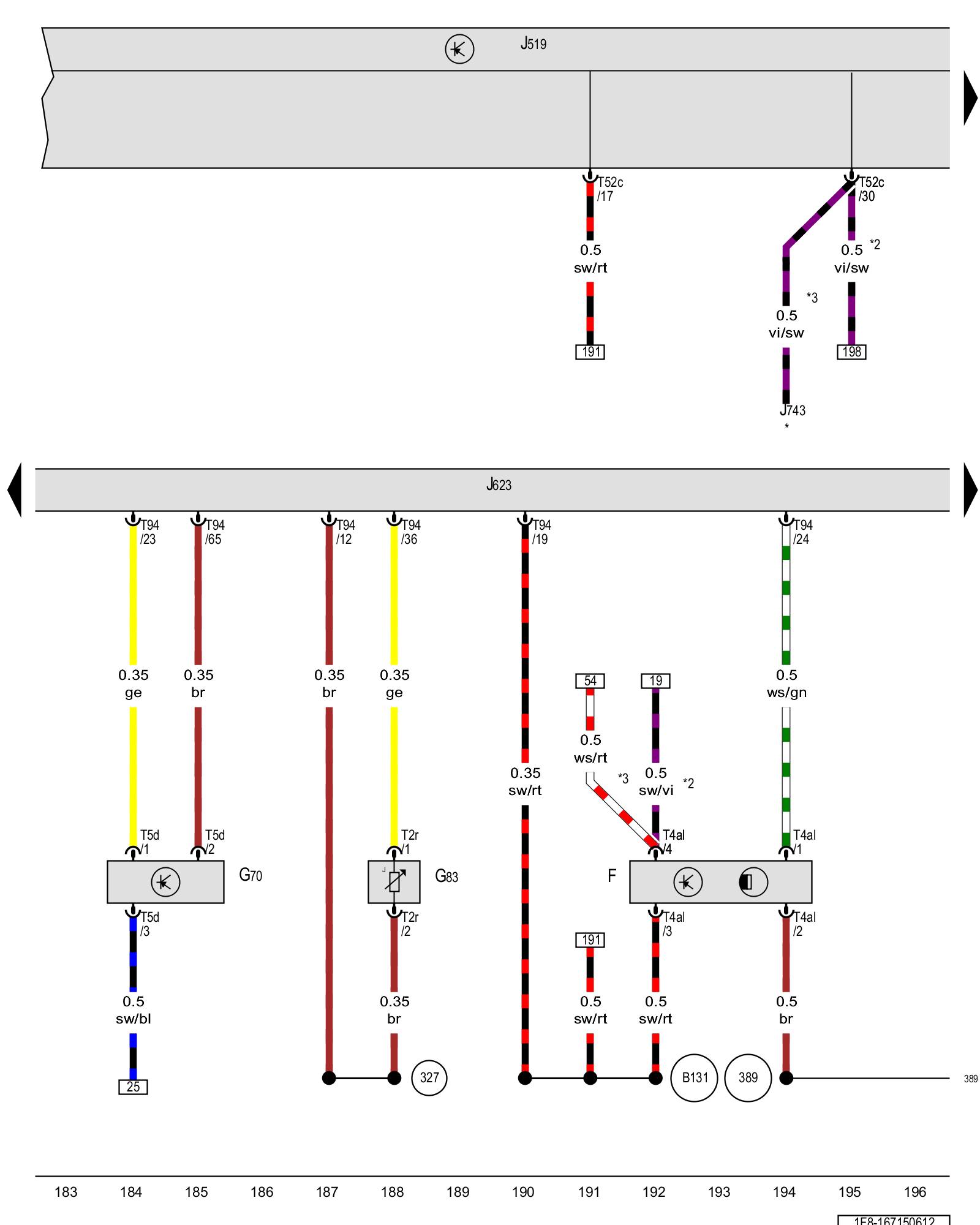

Diagram 167/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Brake lamp switch, Mass airflow sensor, Engine coolant temperature sensor on radiator outlet, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch Component Locations [1][2]Brake Light Switch

G70 - Mass airflow sensor Locations Diagrams

G83 - Engine coolant temperature sensor on radiator outlet Locations Locations Engine Coolant Temperature Sensor On Radiator -G83-

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

J743 - DSG transmission Mechatronic Control modules in front part of vehicle - Overview of Control Modules DSG Transmission Mechatronic -J743-

T2r - Double connector

T4al - 4-pin connector

T5d - 5-pin connector

T52c - 52-pin connector

T94 - 94-pin connector

(327) - Sensor ground connection (in engine compartment wiring harness)

(389) - Ground connection 24 (in main wiring harness)

(B131) - Connection 54 (in interior wiring harness)

* - Refer to applicable transmission wiring diagram

*2 - Only for vehicles with a manual transmission

*3 - Only for vehicles with automatic transmission
