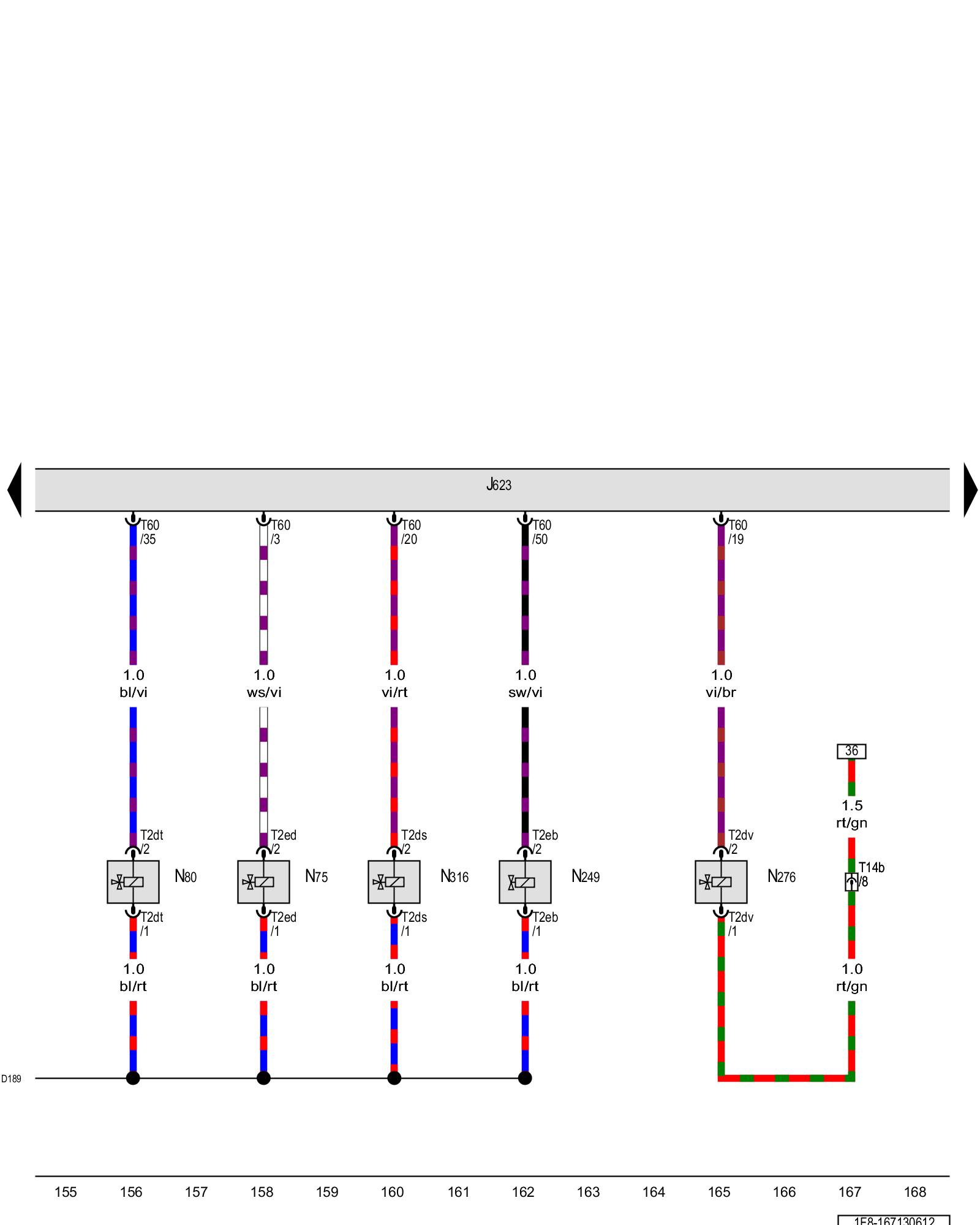

Diagram 167/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine control module, EVAP canister purge regulator valve 1, Turbocharger recirculation valve, Fuel pressure regulator valve, Intake manifold runner control valve





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J623 - Engine control module Control modules in front part of vehicle - Overview of Control Modules

N75 - Wastegate bypass regulator valve 2.0L CCTA, CBFA and BPY Overviews Diagrams

N80 - EVAP canister purge regulator valve 1 Locations Diagrams

N249 - Turbocharger recirculation valve 2.0L CCTA, CBFA and BPY Overviews Diagrams

N276 - Fuel pressure regulator valve 2.0L CCTA, CBFA and BPY Overviews Diagrams

N316 - Intake manifold runner control valve Locations [1][2]Diagrams

T2ds - Double connector

T2dt - Double connector

T2dv - Double connector

T2eb - Double connector

T2ed - Double connector

T14b - 14-pin connector Overview Of Connector Stations and Connectors

T60 - 60-pin connector

(D189) - Connection 87a (in engine wiring harness)
