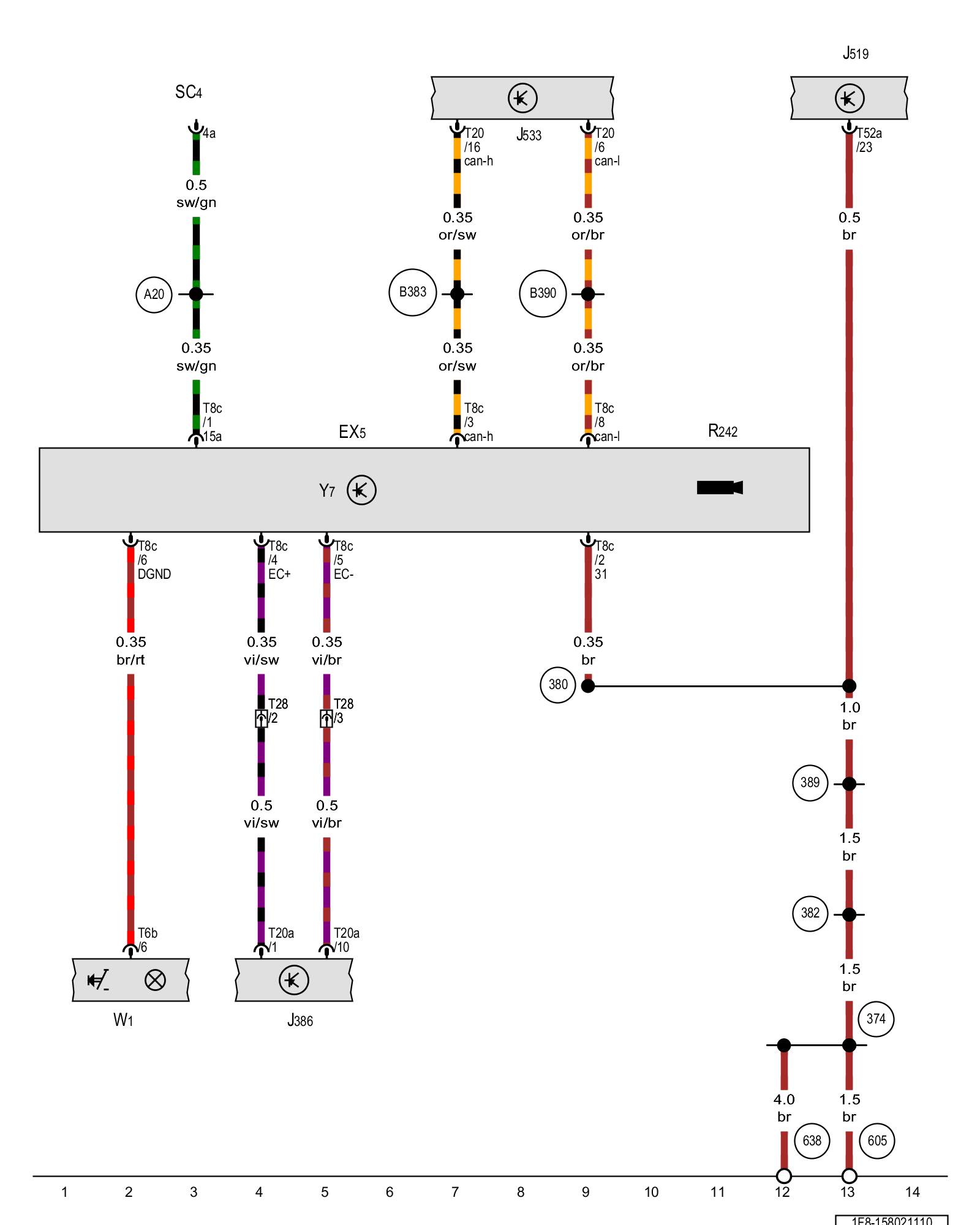

Diagram 158/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Interior rearview mirror, Driver assistance systems front camera





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

EX5 - Interior rearview mirror

J386 - Driver door control module Locations

J519 - Vehicle electrical system control module Control modules in front part of vehicle - Overview of Control Modules

J533 - Data bus on board diagnostic interface Control modules in front part of vehicle - Overview of Control Modules

R242 - Driver assistance systems front camera

SC4 - Fuse 4 (on fuse panel C) Overview Of Fuses

T6b - 6-pin connector

T8c - 8-pin connector

T20 - 20-pin connector

T20a - 20-pin connector

T28 - 28-pin connector, Left A-pillar, bottom

T52a - 52-pin connector

W1 - Front interior lamp

Y7 - Automatic dimming interior rearview mirror

(374) - Ground connection 9 (in main wiring harness)

(380) - Ground connection 15 (in main wiring harness)

(382) - Ground connection 17 (in main wiring harness)

(389) - Ground connection 24 (in main wiring harness)

(605) - Ground connection on upper steering column Overview Of Ground Connections in Interior

(638) - Ground connection on right A-pillar Overview Of Ground Connections in Interior

(A20) - Positive connection (15a) (in instrument panel wiring harness)

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)
