Pass Occupant Detection System Control Module -J706-






Airbag Systems

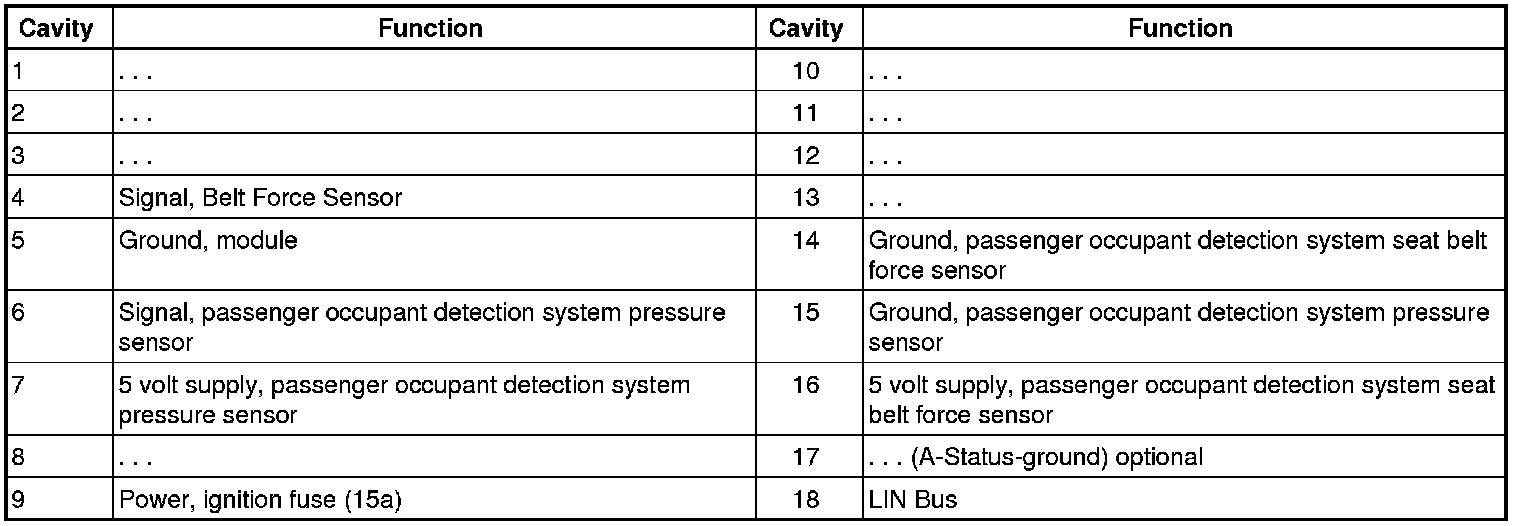

Passenger occupant detection system control module -J706-
