Roof Center Piece Gap Dimensions

Roof Center Piece Gap Dimensions

• The dimensions specified are necessary for the roof to function correctly.

• The dimensions in new vehicles may differ slightly from what is specified in the manual.

• If there are no concerns about function, noise or leaks, an adjustment is not necessary.

• When installing new components, create the same dimensions that existed before.

• Determine the gap dimensions with the setting gauge (VAS 6448).

• Only specified dimensions are on the setting gauge. Tolerances are determined with the adjustment gauge (3371).

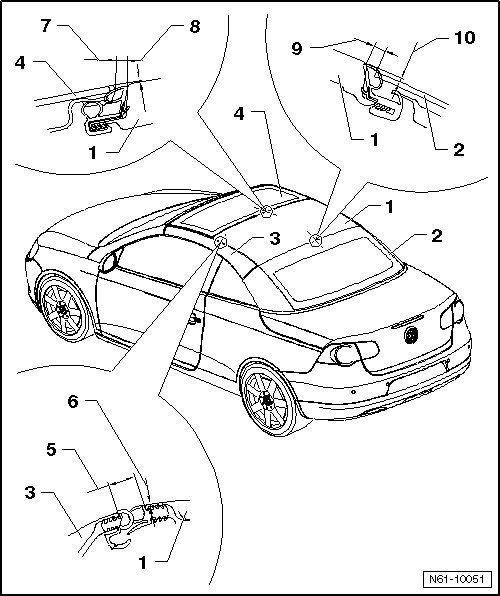

1 Roof Center Section

2 Rear Window Frame

3 Roof Pillar

4 Glass Panel

5 Gap dimension

• 17.5 mm +/- 1 mm

6 Height dimension

• 0 mm +/- 1.5 mm

7 Gap dimension

• 7 mm +/- 1 mm

8 Height dimension

• 1 mm +/- 0.5 mm

9 Gap dimension

• 8 mm +/- 1 mm

10 Height dimension

• 2.5 mm +/- 1 mm
