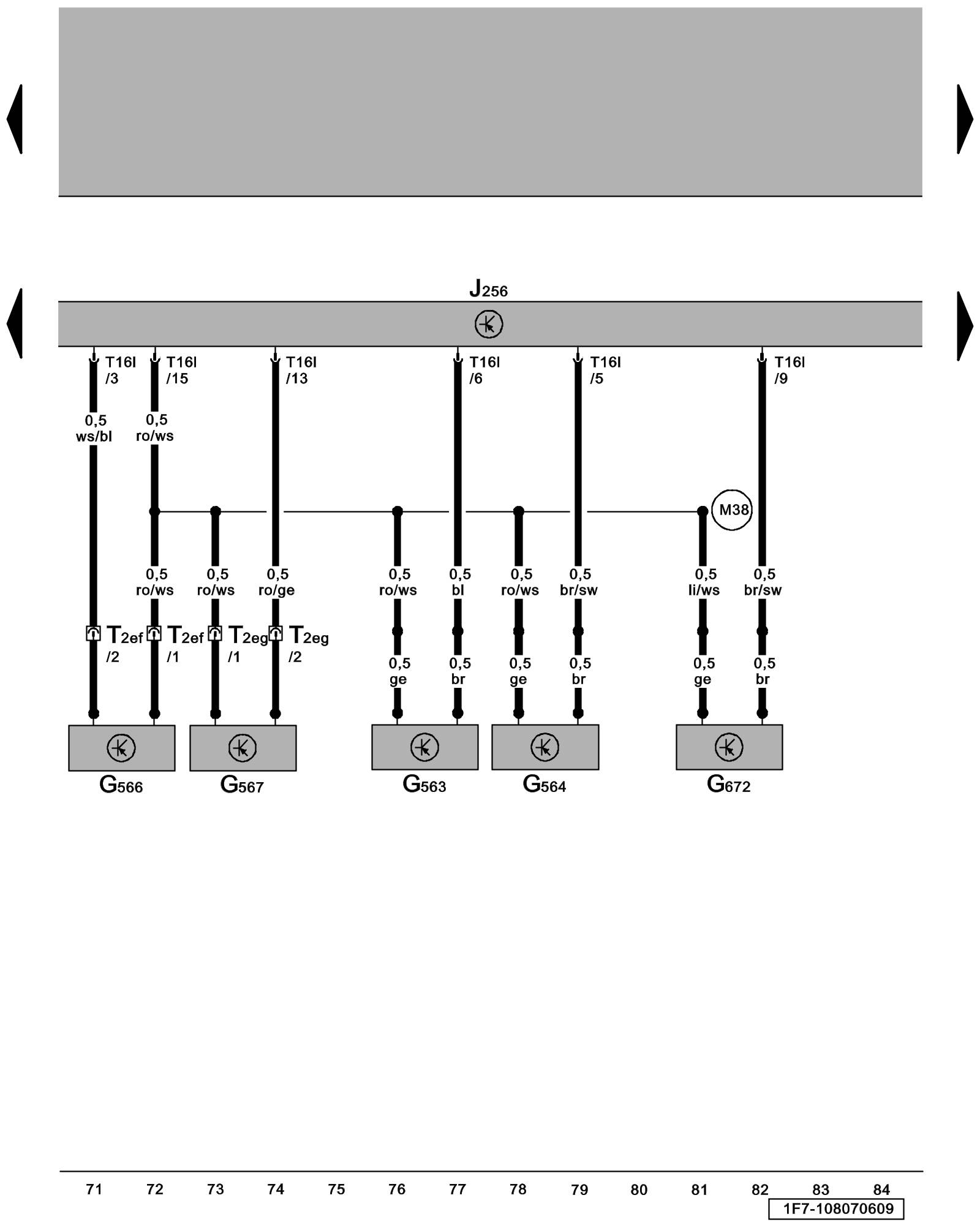

Diagram 108/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Parcel Shelf Left and Right Lock Sensor, Left and Right Roof Pillar Opening Sensor, Convertible Top Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G563 - Parcel Shelf Left Lock Sensor Convertible Top System Overview

G564 - Parcel Shelf Right Lock Sensor Convertible Top System Overview

G566 - Left Roof Pillar Opening Sensor Convertible Top System Overview

G567 - Right Roof Pillar Opening Sensor Convertible Top System Overview

G672 - Top Stowage Sensor 2 Convertible Top System Overview

J256 - Convertible Top Control Module Convertible Top System Overview

T2ef - Double Connector, black, near left roof pillar opening sensor

T2eg - Double Connector, black, near right roof pillar opening sensor

T16l - 16-Pin Connector

(M38) - Connection 7 (in convertible top wiring harness)
