Diagram 40/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

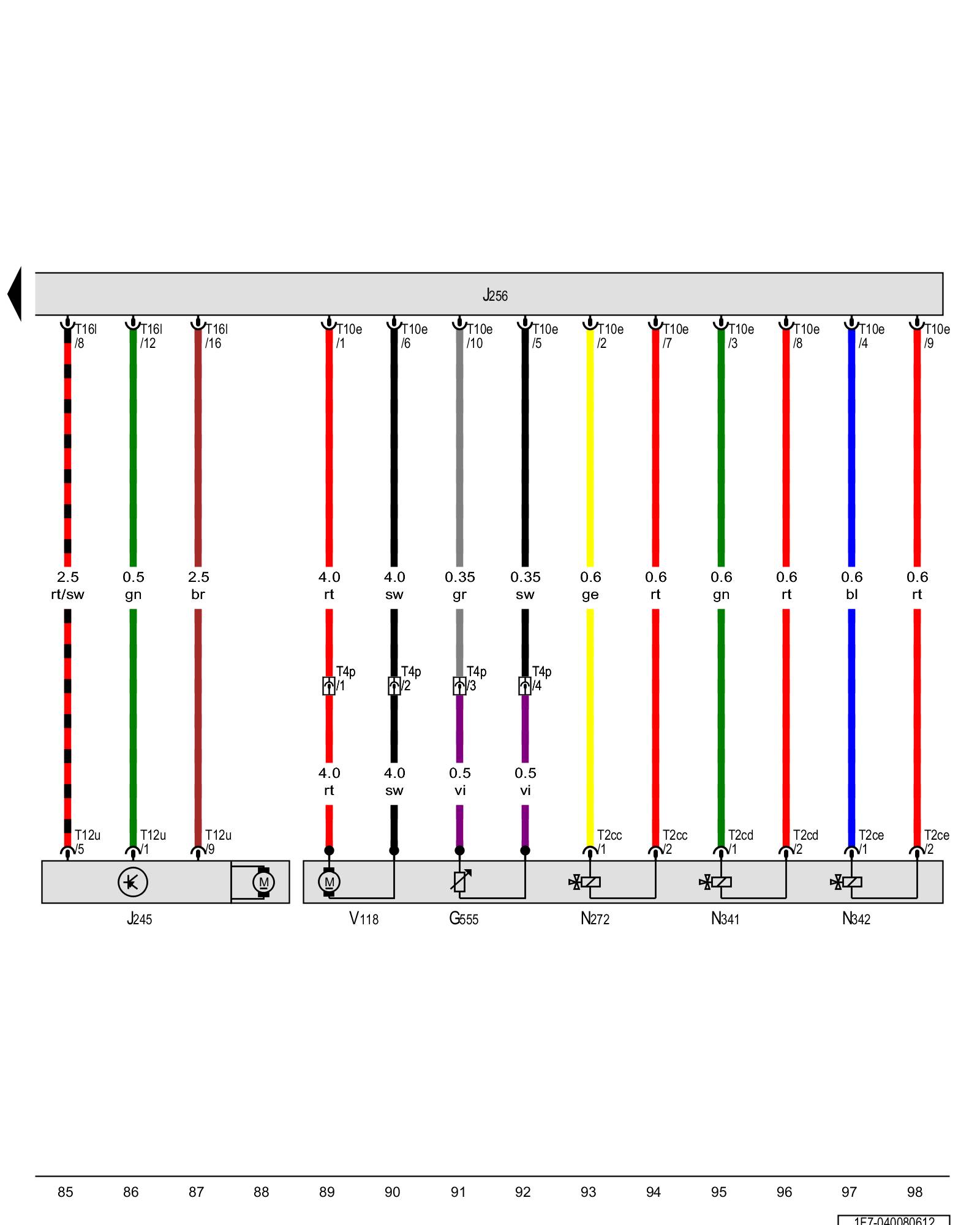

Hydraulic pump temperature sensor, Power sunroof control module, Convertible top control module, Power convertible top valve 1, Power convertible top valve 2, Power convertible top valve 3, Convertible top hydraulic pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G555 - Hydraulic pump temperature sensor Convertible Top Hydraulic System

J245 - Power sunroof control module Convertible Top System Overview Diagrams

J256 - Convertible top control module Convertible Top System Overview [1][2]Convertible Top Control Module

N272 - Power convertible top valve 1 Convertible Top Hydraulic System Power convertible top valve

N341 - Power convertible top valve 2 Convertible Top Hydraulic System Power convertible top valve

N342 - Power convertible top valve 3 Convertible Top Hydraulic System Power convertible top valve

T2cc - Double connector

T2cd - Double connector

T2ce - Double connector

T4p - 4-pin connector, near the convertible top hydraulic pump

T10e - 10-pin connector

T12u - 12-pin connector

T16l - 16-pin connector

V118 - Convertible top hydraulic pump Convertible Top Hydraulic System

Previous Diagram 40/7 (Tracks 71-84)
