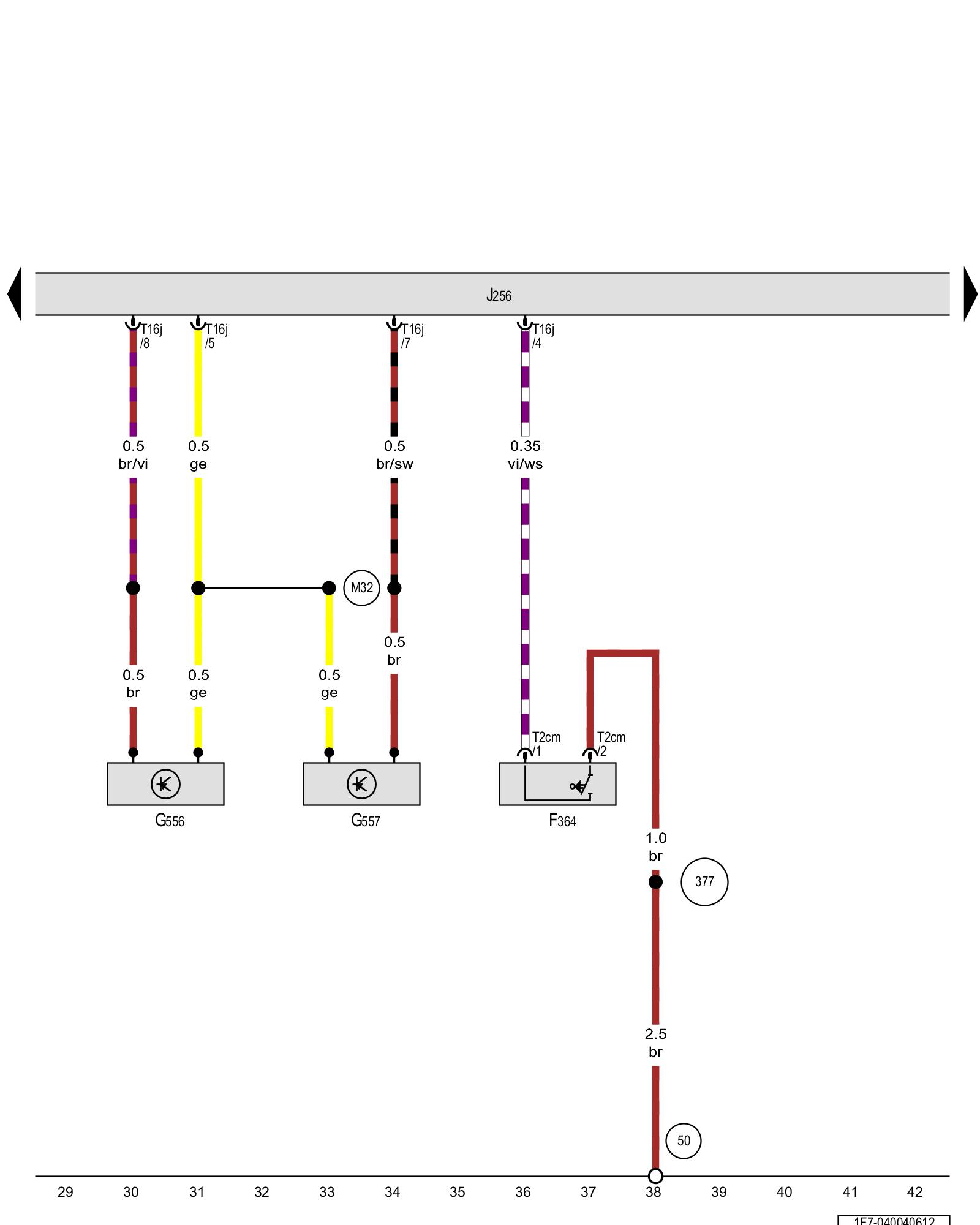

Diagram 40/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Luggage compartment cover contact switch, Left roof pillar front position sensor, Convertible top control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F364 - Luggage compartment cover contact switch Convertible Top System Overview Luggage compartment cover contact switch -F364-

G556 - Left roof pillar front position sensor Convertible Top System Overview

G557 - Right roof pillar front position sensor Convertible Top System Overview

J256 - Convertible top control module Convertible Top System Overview [1][2]Convertible Top Control Module

T2cm - Double connector

T16j - 16-pin connector

(50) - Ground connection in luggage compartment, left Overview Of Ground Connections in Luggage Comp.

(377) - Ground connection 12 (in main wiring harness)

(M32) - Connection 1 (in convertible top wiring harness)
