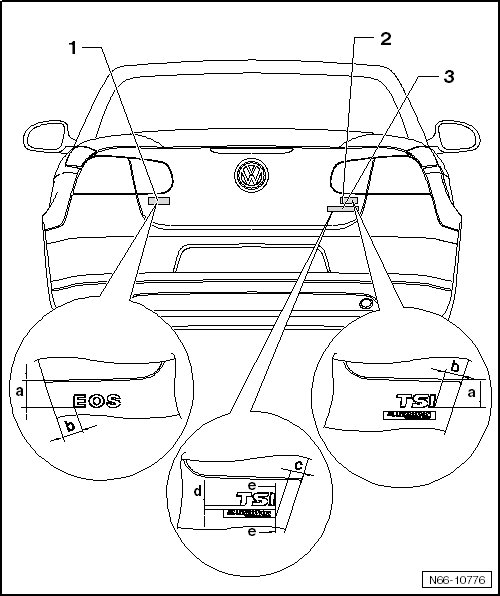

Rear Name Plate Dimensions from 01.11

Rear Name Plate Dimensions from 01.11






1 Name plate

• Model designation

• Height - a -: 40 mm, from the lower edge of the tail lamps to the lower edge of the name plate

• Side dimension - b -: 20 mm, from the outer edge in the rear lid to the name plate

2 Name plate

• Depending on the type of engine

• Height - a -: 40 mm, from the lower edge of the tail lamps to the lower edge of the name plate

• Side dimension - b -: 20 mm, from the outer edge in the rear lid to the name plate

3 Name plate

• Additional, depending on the model

• Height - d -: 8 mm, from the lower edge of the upper name plate to the name plate

• Side dimension - c -: 18 mm, from the outer edge in the rear lid to the name plate
