Rear Bumper Cover from 01.11, Rear Bumper Cover Substructure

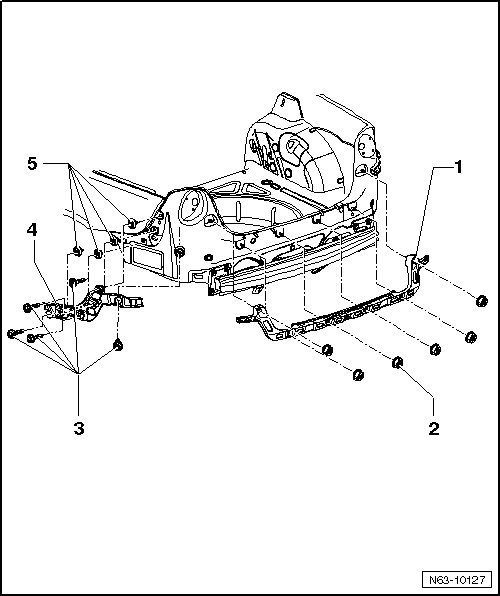

Rear Bumper Cover Substructure






1 Center securing strip

2 Plastic nut

• Quantity: 6

• Tightening specification: 2 Nm

3 Screws

• 5 on each side

• Tightening specification: 2 Nm

4 Guide trim

• Left and right

5 Expanding nut

• 5 on each side
