Procedure 2

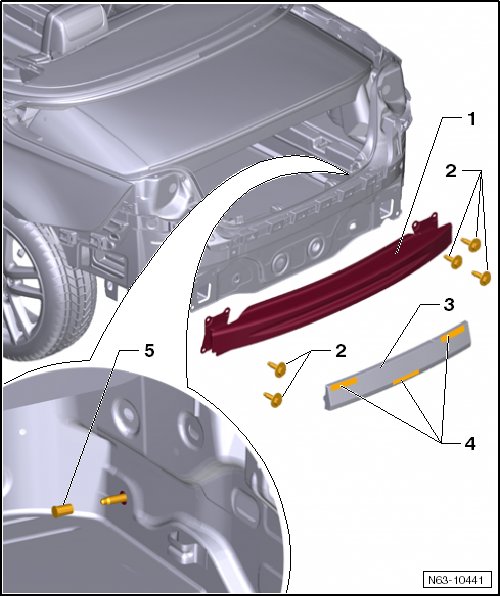

Rear Bumper Cover Assembly Overview






1 Rear bumper carrier

2 Bolt

• 3 on each side

• Tightening specification: 20 Nm

3 Foam piece

• With adhesive strips

4 Two-sided tape

• 3 strips

5 Cover
