Procedure 1

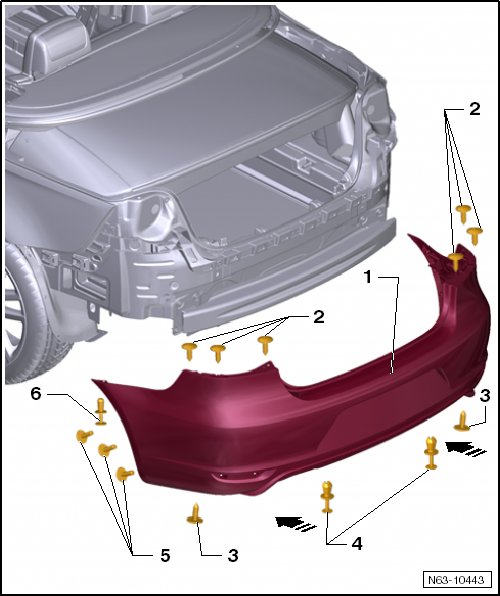

Rear Bumper Cover Assembly Overview






1 Rear bumper cover

• PP/EPDM material

2 Bolt

• 3 on each side

• Tightening specification: 2 Nm

3 Bolt

• Quantity: 2

• Tightening specification: 8 Nm

4 Expanding rivet

• Quantity: 2

5 Bolt

• 3 on each side

• Tightening specification: 2 Nm

6 Expanding rivet

• Left and right
