Front Bumper Cover 01.11, Front Bumper Cover Attachments

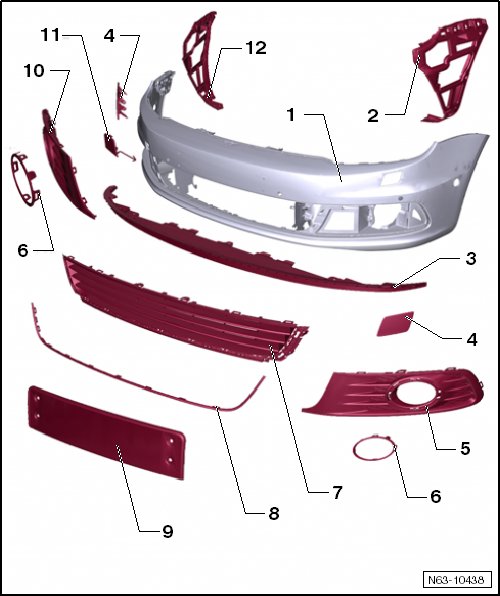

Front Bumper Cover Attachments

• Depending on model version, slight deviations for attachments must be considered.






1 Front bumper cover

• PP/EPDM material

2 Left guide

• Locked to bumper cover - 1 -.

3 Spoiler

• Locked to bumper cover - 1 -.

4 Headlamp washer system cover

5 Left vent grille

• Locked in bumper cover - 1 -.

• Can be carefully released from locking mechanisms using a plastic wedge from outside and removed

6 Decorative trim strip

• Locked on vent grille - 6 -

7 Center vent grille

• Locked in bumper cover - 1 -.

• Remove only when bumper cover - 1 - has been removed

8 Decorative trim strip

• Remove only when center vent grille - 7 - has been removed.

9 License plate holder

• There are different sizes

• Removing and Installing, refer to => [ License Plate Holder ] License Plate Holder

10 Right vent grille

• Locked in bumper cover - 1 -.

• Can be carefully released from locking mechanisms using a plastic wedge from outside and removed

11 Towing eyelet cap

• Locked in bumper cover - 1 -.

12 Right guide

• Locked to bumper cover - 1 -.
