Front Bumper Cover Substructure

Front Bumper Cover Substructure

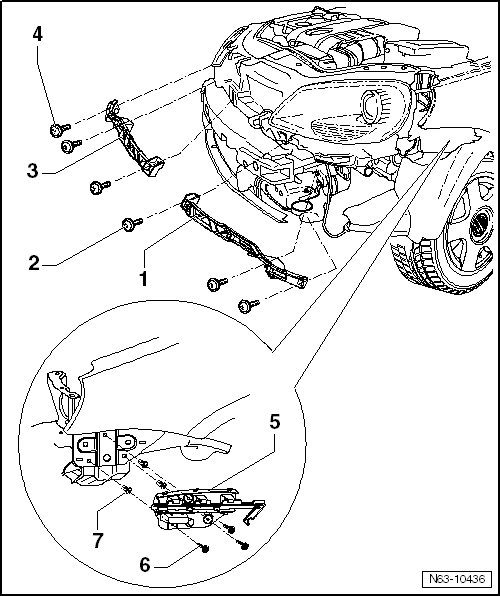

1 Left guide piece

• Bolted to lock carrier

2 Bolt

• Quantity: 3

• Tightening specification: 2 Nm

3 Right guide piece

• Bolted to lock carrier

4 Bolt

• Quantity: 3

• Tightening specification: 2 Nm

5 Guide trim

• Left and right

• Removing:

- Attached to fender at sides with screws - 6 -

6 Bolt

• 3 on each side

• Tightening specification: 2 Nm

7 Expanding nut

• 3 on each side
