Procedure 2

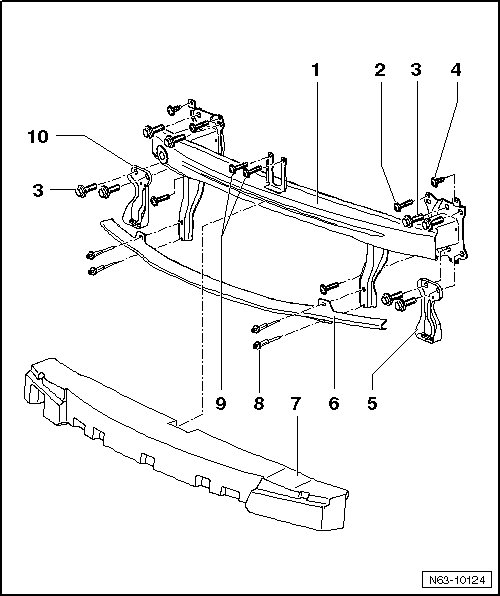

Front Bumper Cover Assembly Overview






1 Front bumper carrier

2 Bolt

• 2 on each side

• Tightening specification: 8 Nm

3 Bolt

• 4 on each side

• Tightening specification: 60 Nm

4 Bolt

• Left and right

• Tightening specification: 3.5 Nm

5 Left retainer

• Nose insulation bracket

6 Cross member

• Pedestrian protection

7 Foam piece

• Self-adhesive

8 Pop rivet

• 2 on each side

9 Bolt

• Quantity: 2

• Tightening specification: 8 Nm

10 Right retainer

• Nose insulation bracket
