Procedure 1

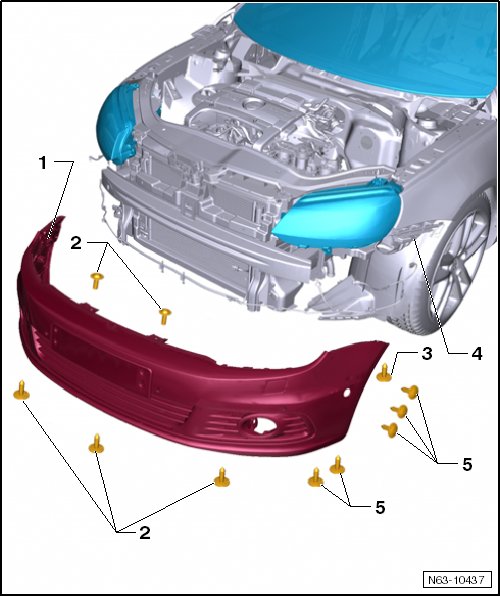

Front Bumper Cover Assembly Overview






1 Front bumper cover

• PP/EPDM material

• Removing and Installing, refer to => [ Front Bumper Cover ] Front Bumper Cover

2 Bolt

• Quantity: 5

• Tightening specification: 2 Nm

3 Bolt

• Left and right

• Pointing upward

• Tightening specification: 2 Nm

4 Guide trim

• Left and right

5 Bolt

• 5 on each side

• Tightening specification: 2 Nm
