Front Mid-Range Speakers

Front Mid-Range Speakers

• Removal and installation of left or right side speakers is identical.

• Midrange speaker is installed only in conjunction with the "Dynaudio Authentic Fidelity" sound system.

Removal

Do the following before starting the procedure:

- Turn off the ignition and all electric consumers and remove the key.

The door trim panel must be removed first in order to remove a speaker.

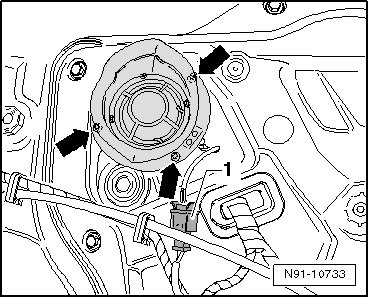

- Release locking mechanism of harness connector - 1 - on bottom of speaker and disconnect it. Remove screws - arrows -.






Installation

Install in reverse order of removal.
