Parking Aid Control Module -J446-







Control modules in rear part of vehicle

Parking Aid Control Module -J446-









Component Location:

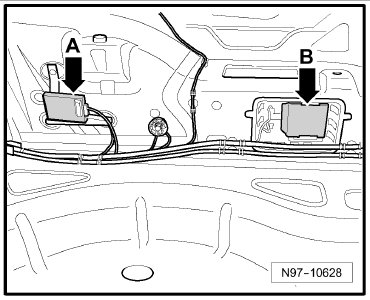

Behind the right luggage compartment side trim -Arrow
B-

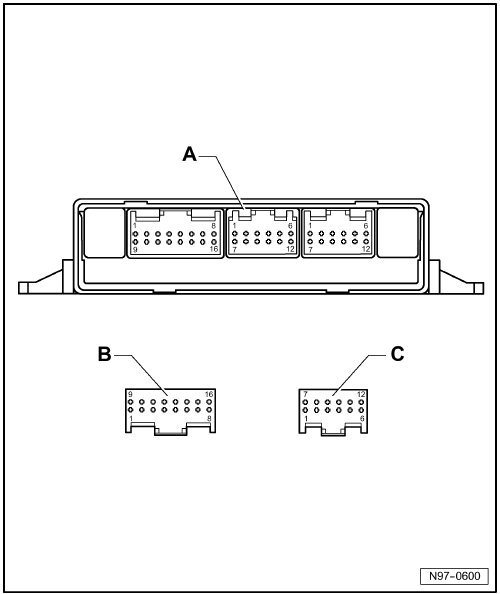

Pin Arrangements:







A - Parking Aid Control Module -J446-
Connector

B - 16-pin connector -T16h-

C - 12-pin connector -T12l-
