Allocating Parallel Parking Assistance Sensor Brackets To Installation Location

Allocating Parallel Parking Assistance Sensor Brackets To Installation Location

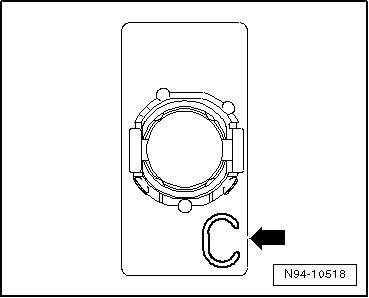

Sensor brackets are designed in different shapes and must be matched to the respective component location in the bumper cover. To simplify allocation, the sensor brackets are marked on the inside with a letter - arrow -. In addition, observe the alignment of the sensor connections in the respective allocation.

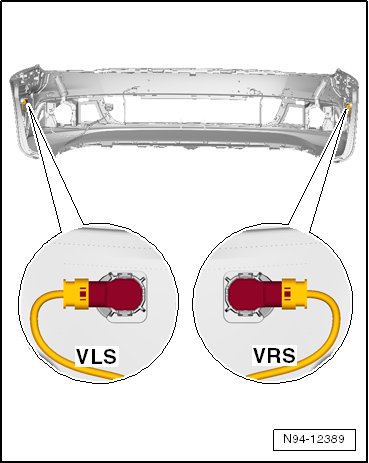

Parallel parking assistance sensor bracket allocation on the inside of the front bumper cover






• Code letter VLS - sensor bracket for left front parallel parking assistance sensor (G568)

• Code letter VRS - sensor bracket for right front parallel parking assistance sensor (G569)

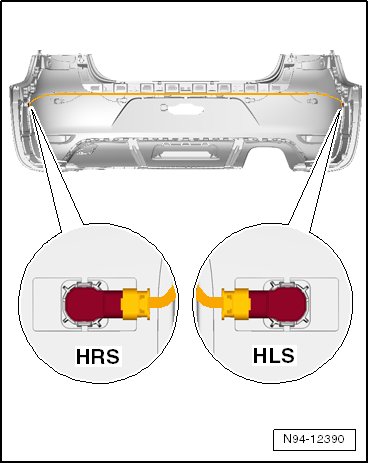

Parallel parking assistance sensor bracket allocation on the inside of the rear bumper cover






• Code letter HRS - sensor bracket for right rear parallel parking assistance sensor (G717)

• Code letter HLS - sensor bracket for left rear parallel parking assistance sensor (G716)
