Anti-theft Alarm System Overview, Through 05.11

Anti-theft Alarm System Overview, Through 05.11

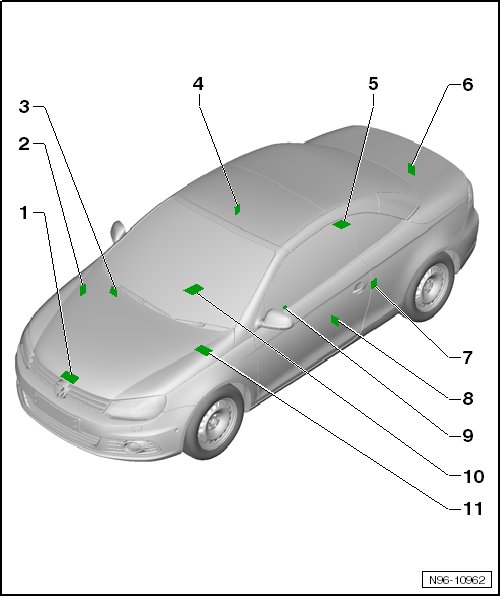

1 Engine Hood Contact Switch (F266)

• In hood lock.

• Removing and installing, refer to => [ Engine Hood Contact Switch (F266) ] Service and Repair.

2 Alarm Horn (H12)

• In the right wheel housing on the A-pillar.

• Removing and installing, refer to => [ Alarm Horn (H12) ] Alarm Horn (H12).

3 Vehicle Inclination Sensor (G384)

• Behind the instrument cluster.

• Removing and installing, refer to => [ Vehicle Inclination Sensor (G384) ] Vehicle Inclination Sensor (G384).

4 Front Passenger Door Contact Switch (F3)

• In the Front passenger central locking lock unit (F221)

5 Interior Monitoring Transceiver Module 2 (G305)

• In the center under the rear seat bench.

• Removing and installing, refer to => [ Interior Monitoring Transceiver Module 2 (G305) Through 05.11 ] Interior Monitoring Transceiver Module 2 (G305) Through 05.11.

6 Rear Lid Lock Unit (F256)

7 Driver Door Contact Switch (F2)

• In the Driver central locking lock unit (F220).

8 Interior Monitoring And Vehicle Inclination Deactivation Button (E616)

• In the door trim storage compartment on the driver side.

• Removing and installing, refer to => [ Interior Monitoring and Vehicle Inclination Deactivation Button (E616) ] Interior Monitoring and Vehicle Inclination Deactivation Button (E616).

9 Central Locking -SAFE- Indicator Lamp (K133)

• In the door trim on the driver side.

• Removing and installing, refer to => [ Central Locking -SAFE- Indicator Lamp (K133) ] Central Locking -SAFE- Indicator Lamp (K133).

10 Interior Monitoring Transceiver Module 1 (G303)

• On the front center tunnel under the center console.

• Removing and installing, refer to => [ Interior Monitoring Transceiver Module 1 (G303) Through 05.11 ] Interior Monitoring Transceiver Module 1 (G303) Through 05.11.

11 Vehicle Electrical System Control Module (J519)

• Inside the footwell on the driver side under the instrument panel.

• Includes the Central locking and anti-theft alarm system antenna (R47). Refer to=> [ Central Locking and Anti-Theft Alarm System Antenna (R47), Through 05.11 ] Central Locking and Anti-Theft Alarm System Antenna (R47), Through 05.11.

• Removing and installing, refer to => [ Vehicle Electrical System Control Module (J519) ] Initial Inspection and Diagnostic Overview.

• Anti-theft alarm system adaptations, refer to=> [ Anti-Theft Alarm System, Adapting, Through 05.11 ] Anti-Theft Alarm System, Adapting, Through 05.11.
