Rear Suspension

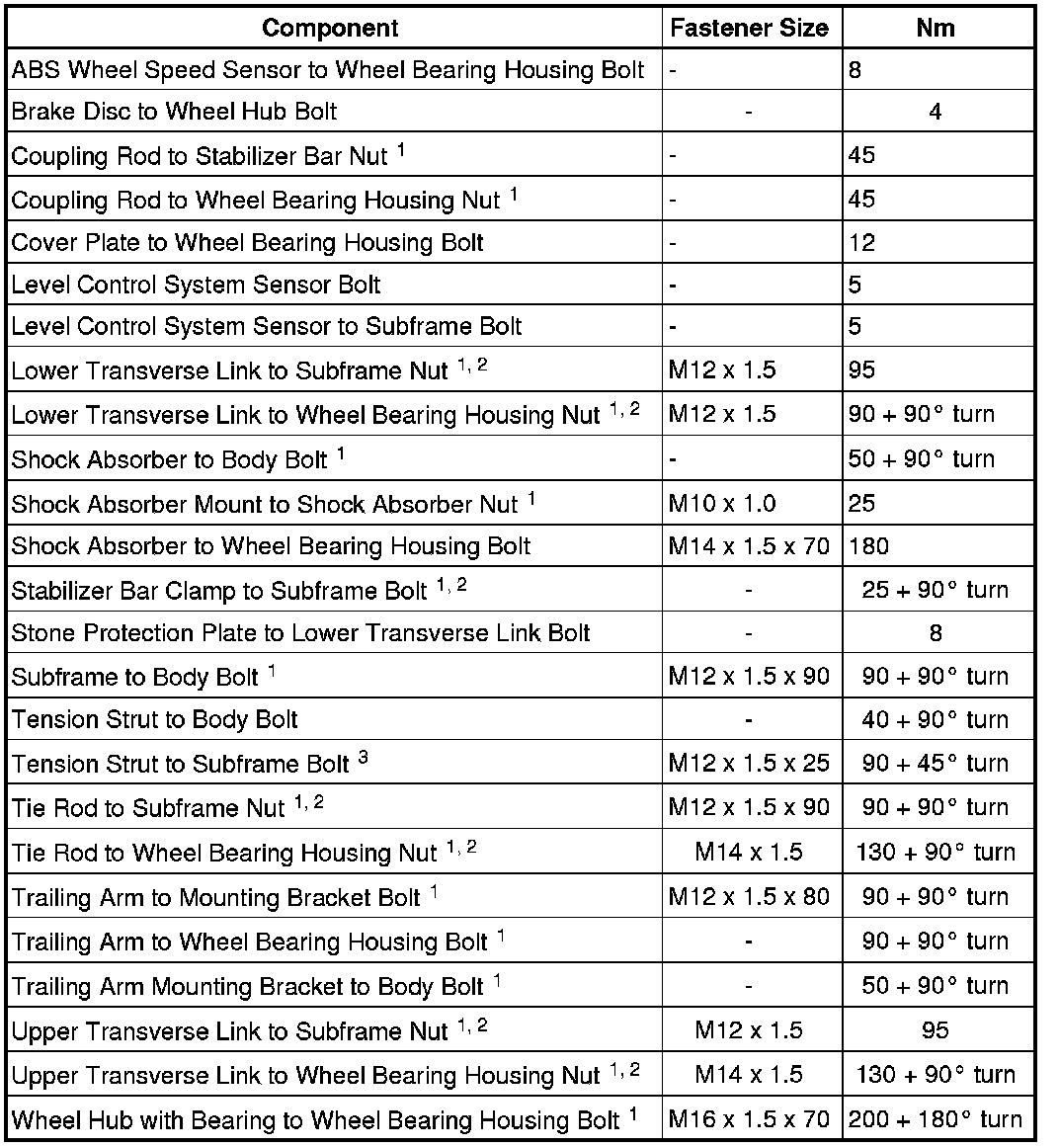

Fastener Tightening Specifications






• 1 Always replace after removal.

• 2 Always tighten the threaded connection in curb weight position.

• 3 When tightening, the vehicle must be resting on the ground.
