Procedure 2

Seat Drawer Mount

• Removing and installing on the left side of the vehicle is described here. Removing and installing on the right side is identical.

Removing

- Remove the front seat. Refer to => [ Front Seat ] Front Seat

- Remove the trim on the sill-side from the seat. Refer to => [ Sill-Side Seat Trim ] Sill-Side Seat Trim

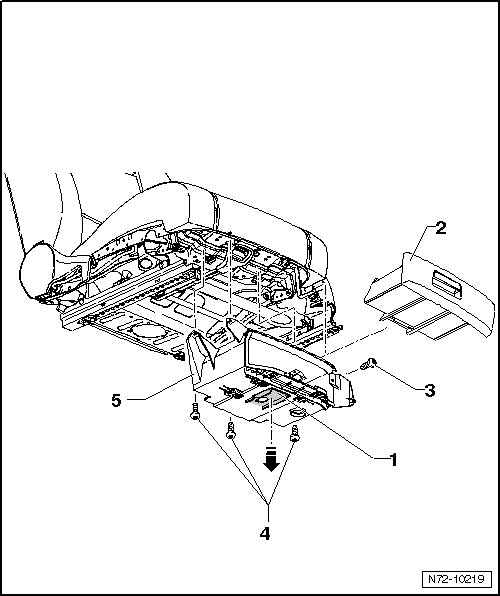

- Press tab - 1 - down - arrow - and remove drawer - 2 - from mount.

- Remove bolt - 3 - (2 Nm).

- Remove the three bolts - 4 - (2 Nm).

- Remove mount - 5 - from seat frame.






Installation

- Install in reverse order of removal.
