Parallel Parking Assistance Overview

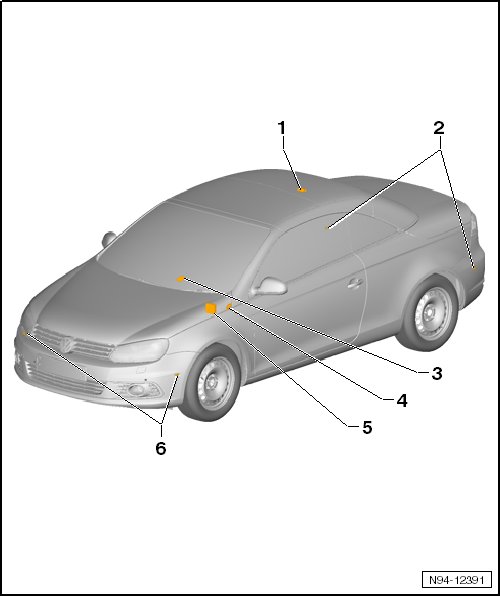

Parallel Parking Assistance Overview






1 Rear Parking Aid Warning Buzzer (H15)

• Mounting bolt tightening specification: 1 Nm

• Behind the right side wall trim in the luggage compartment.

• Removing and installing, refer to => [ Rear Parking Aid Warning Buzzer (H15) ] Rear Parking Aid Warning Buzzer (H15).

• Check via the output diagnostic test mode of the Parallel parking assistance control module (J791).

• Adapting, refer to => [ Parking Aid Warning Buzzer, Adapting ] Parking Aid Warning Buzzer, Adapting.

2 Parallel Parking Assistance Sensor In The Rear Bumper Cover

• Right rear parallel parking assistance sensor (G717)

• Left rear parallel parking assistance sensor (G716)

• Removing and installing, refer to => [ Rear Parallel Parking Assistance Sensor (G716)/(G717) ] Rear Parallel Parking Assistance Sensor (G716)/(G717).

• Checking, refer to => [ Parallel Parking Assistance Sensor, Checking ] Parallel Parking Assistance Sensor, Checking.

• Removing and installing, refer to => [ Parallel Parking Assistance Sensor, Painting ] Parallel Parking Assistance Sensor, Painting.

3 Parallel Parking Assistance Button (E581)

• In the center console storage compartment in front of the selector lever.

• Removing and installing, refer to => [ Parallel Parking Assistance Button (E581) ] Parallel Parking Assistance Button (E581).

• Checking, refer to => [ Parallel Parking Assistance Button (E581), Checking ] Parallel Parking Assistance Button (E581), Checking.

4 Front Parking Aid Warning Buzzer (H22)

• Inside the driver footwell, on the left instrument panel relay carrier.

• Removing and installing, refer to => [ Front Parking Aid Warning Buzzer (H22) ] Front Parking Aid Warning Buzzer (H22).

• Check with output diagnostic test mode.

• Adapting, refer to => [ Parking Aid Warning Buzzer, Adapting ] Parking Aid Warning Buzzer, Adapting.

5 Parallel Parking Assistance Control Module (J791)

• Mounting bolt tightening specification: 1.5 Nm

• Tightening torque of mounting bolts for deformation element: 9 Nm

• Inside the driver footwell above the relay carrier on the left side for the instrument panel.

• Removing and installing, refer to => [ Parallel Parking Assistance Control Module (J791) ] Parallel Parking Assistance Control Module (J791).

• Coding, refer to => [ Parallel Parking Assistance Control Module (J791), Coding ] Parallel Parking Assistance Control Module (J791), Coding.

• Adapting, refer to => [ Parallel Parking Assistance Control Module (J791), Adapting ] Parallel Parking Assistance Control Module (J791), Adapting.

6 Parallel Parking Assistance Sensor In The Front Bumper Cover

• Left front parallel parking assistance sensor (G568)

• Right front parallel parking assistance sensor (G569)

• Removing and installing, refer to => [ Front Parallel Parking Assistance Sensor (G568)/(G569) ] Front Parallel Parking Assistance Sensor (G568)/(G569).

• Checking, refer to=> [ Parallel Parking Assistance Sensor, Checking ] Parallel Parking Assistance Sensor, Checking.

• Removing and installing, refer to => [ Parallel Parking Assistance Sensor, Painting ] Parallel Parking Assistance Sensor, Painting.
