Windshield Wiper Motor, Removing

Windshield Wiper Motor, Removing

- Pry off ball head - arrow - of linkage - 1 - from motor crank using (80-200) or a suitable screwdriver.

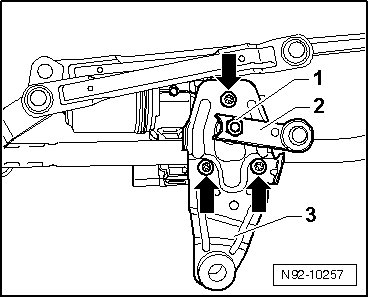

- Remove hex nut - 1 -.






- Remove motor crank - 2 - from wiper motor shaft.

- Remove mounting bolts - arrows - and remove retaining plate - 3 -.

- Remove wiper motor with control module down and out of wiper frame.
