Front Door Window

Front Door Window

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1783)

• Trim removal wedge (3409)

• The following describes removing and installing the right door window. Removing and installing the left door window is identical.

Removing






- Remove the front door trim panel..

- Remove the window shaft seal - 5 - from the flange.

- Remove the cap with the trim removal wedge (3409).

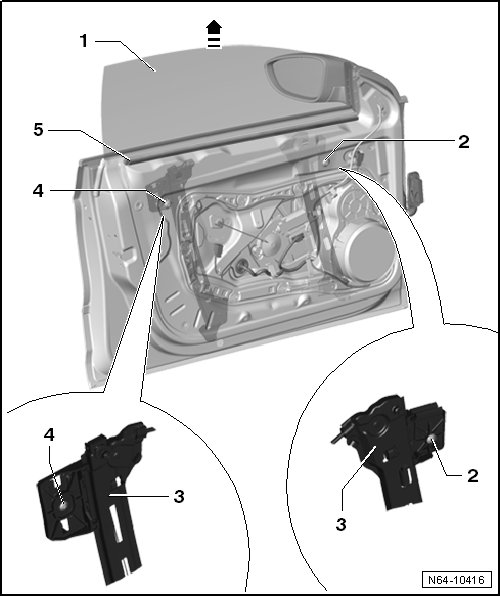

- Lower the door window, until the clamping bolts - 2 and 4 - for the door window are accessible.

- Loosen the bolts - 2 - but do not remove them all the way. Press the clamping bracket together.

- Remove the bolt - 4 - entirely.

- remove the door window - arrow - upward out of the window shaft.

• If the work step is not possible due to a malfunction via the electrical window regulator, window regulator motor can be unscrewed to be able to slide window down.

Installation






- Attach the retaining clip - 6 - to the door window - arrow a - and fold it up - arrows b -.

- Guide the door window - 1 - into the door - arrow c -. Make sure the door window is inserted correctly in the window guide - 2 -.

- Without using any pressure, guide the door window - arrow c - into the clamping brackets - 5 -.

- Align the door window to the window guide - arrow d -.

- Tighten the bolts - 3 and 4 - to the tightening specification: 8 Nm.

- Continue by performing the steps used in removal in reverse order.

• The functions test is performed before the door trim is installed.
