Rear Window Shaft Strip

Rear Window Shaft Strip






Remove Inner Window Shaft Strip

- Remove the rear door trim panel..

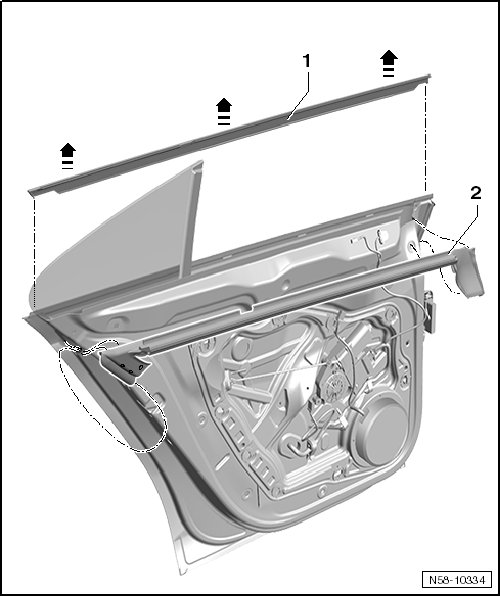

Loosen the front and rear protective strips - 2 - from the retaining clips and remove them evenly from the flange

Install Inner Window Shaft Strip

Press the protective strips - 2 - evenly by hand onto the flange

Outer Window Shaft Strip, Removing

Remove the protective strips - 1 - evenly from the flange

Install Outer Window Shaft Strip

Press the protective strips - 1 - evenly by hand onto the flange
