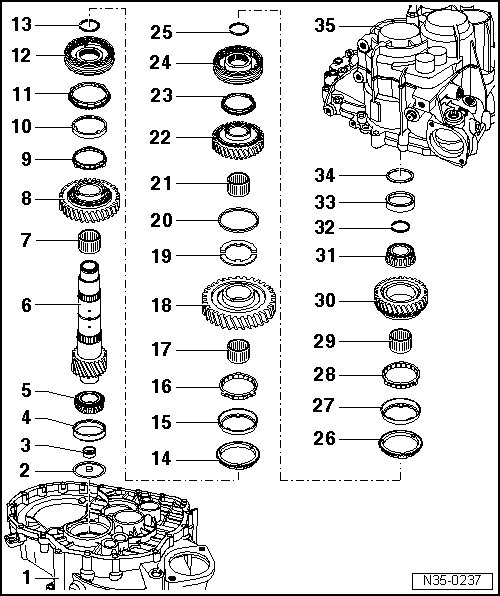

Output Shaft, 1st to 4th Gears Overview
Output Shaft, 1st to 4th Gears Overview
Disassembly and assembly, refer to => [ Output Shaft, 1st to 4th Gears ] Output Shaft, 1st to 4th Gears.
• Adjust the output shaft if it or the tapered roller bearing are being replaced. Refer to => [ Output Shaft, 1st to 4th Gears, Adjusting ] Output Shaft, 1st to 4th Gears, Adjusting.
• Replace both tapered roller bearings together.
1 Clutch Housing
2 Oil Deflector Ring
3 Dished Washer
• Removing, refer to => [ Removing the Dished Washer from the Output Shaft ] Output Shaft, 1st to 4th Gears.
• Installing, refer to => [ Installing the Dished Washer onto the Output Shaft ] Output Shaft, 1st to 4th Gears.
4 Outer Race/Tapered Roller Bearing
• Removing, refer to => [ Removing the Outer Race/Tapered Roller Bearing from the Clutch Housing ] Output Shaft, 1st to 4th Gears.
• Installing, refer to => [ Installing the Outer Race/Tapered Roller Bearing in the Clutch Housing ] Output Shaft, 1st to 4th Gears.
5 Inner Race/Tapered Roller Bearing
• Removing, refer to => [ Removing the Inner Race/Tapered Roller Bearing on the Side of the Clutch Housing ] Output Shaft, 1st to 4th Gears.
• Installing, refer to => [ Installing the Inner Race/Tapered Roller Bearing on the Side of the Clutch Housing ] Output Shaft, 1st to 4th Gears.
6 Output Shaft
• For 1st through 4th gear.
• Adjusting, refer to => [ Output Shaft, 1st to 4th Gears, Adjusting ] Output Shaft, 1st to 4th Gears, Adjusting.
7 Needle Bearing
• For 2nd gear.
8 2nd Gear
• 1st/2nd gear synchronizing, from transmission build date 26 October 2009, refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
9 Synchronizer Ring for 2nd Gear
• 1st/2nd gear synchronizing, from transmission build date 26 October 2009, refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
10 2nd Gear Outer Race
• 1st/2nd gear synchronizing, from transmission build date 26 October 2009, refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
11 2nd Gear Synchronizer Ring
• 1st/2nd gear synchronizing, from transmission build date 26 October 2009, refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
12 Locking Collar with Synchronizer Hub for 1st and 2nd Gears
• After removing the lock ring - item 13 -, remove the 2nd gear. Refer to => [ Removing the Locking Collar and the Synchronizer Hub for 1st and 2nd Gear ] Output Shaft, 1st to 4th Gears.
• Disassembling, refer to => [ Disassembling and Assembling the Locking Collar and the Synchronizer Hub for 1st, 2nd, 3rd and 4th Gears ] Output Shaft, 1st to 4th Gears.
• Assembling the locking collar/synchronizer hub. Refer to => [ Disassembling and Assembling the Locking Collar and the Synchronizer Hub for 1st, 2nd, 3rd and 4th Gears ] Output Shaft, 1st to 4th Gears.
• 1st/2nd gear synchronizing, from transmission build date 26 October 2009, refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
13 Lock Ring
14 1st Gear Synchronizer Ring
• 1st/2nd gear synchronizing, from transmission build date 26 October 2009, refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
15 1st Gear Outer Race
• 1st/2nd gear synchronizing, from transmission build date 26 October 2009, refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
16 Synchronizer Ring for 1st Gear
• 1st/2nd gear synchronizing, from transmission build date 26 October 2009, refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
17 Needle Bearing
• For 1st gear.
18 1st Gear
• 1st/2nd gear synchronizing, from transmission build date 26 October 2009, refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
19 Thrust Washer
• For 1st and 4th gears.
• Quantity: 2
• The tab on the thrust washer must fit into the hole in the output shaft.
20 Washer
• Holds the thrust washers - item 19 - in place on the output shaft.
21 Needle Bearing
• For 4th gear.
22 4th Gear
23 4th Gear Synchronizer Ring
• Made of either brass or steel.
• Checking for wear, refer to => [ Checking the 4th Gear Synchronizer Ring for Wear ] Output Shaft, 1st to 4th Gears.
24 Locking Collar with Synchronizer Hub for 3rd and 4th Gears
• After removing the lock ring - item 25 -, remove the 4th gear. Refer to => [ Removing the 3rd and 4th Gear Synchronizer Hub/Locking Collar with the 4th Gear ] Output Shaft, 1st to 4th Gears.
• Disassembling, refer to => [ Disassembling and Assembling the Locking Collar and the Synchronizer Hub for 1st, 2nd, 3rd and 4th Gears ] Output Shaft, 1st to 4th Gears.
• Installed position: locking collar/synchronizer hub, refer to => [ Installed Position: Locking Collar/Synchronizer Hub for 3rd and 4th Gears ] Output Shaft, 1st to 4th Gears.
• Assembling the locking collar/synchronizer hub, refer to => [ Disassembling and Assembling the Locking Collar and the Synchronizer Hub for 1st, 2nd, 3rd and 4th Gears ] Output Shaft, 1st to 4th Gears and to => [ Assembly: Locking Collar/Synchronizer Hub for 1st, 2nd, 3rd and 4th Gears ] Output Shaft, 1st to 4th Gears.
• Installing, refer to => [ Installing the Synchronizer Hub with Locking Collar for 3rd and 4th Gears ] Output Shaft, 1st to 4th Gears.
25 Lock Ring
26 3rd Gear Synchronizer Ring
• Modified 3rd gear synchronizing from transmission build date 25 May 2000, differentiation. Refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
27 3rd Gear Outer Race
• Modified 3rd gear synchronizing from transmission manufacture date 25 May 2000, differentiation. Refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
28 Synchronizer Ring for 3rd Gear
• Modified 3rd gear synchronizing from transmission manufacture date 25 May 2000, differentiation. Refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
29 Needle Bearing
• For 3rd gear.
30 3rd Gear
• Modified 3rd gear synchronizing from transmission manufacture date 25 May 2000, differentiation. Refer to => [ Differentiating 1st/2nd Gear Synchronization, Differentiating 3rd Gear Synchronization ] Output Shaft, 1st to 4th Gears.
31 Inner Race/Tapered Roller Bearing
• Removing, refer to => [ Remove the Inner Race/Tapered Roller Bearing on the Side of the Transmission Housing ] Output Shaft, 1st to 4th Gears.
• Installing, refer to => [ Installing the Inner Race/Tapered Roller Bearing on the Side of the Transmission Housing ] Output Shaft, 1st to 4th Gears.
32 Lock Ring
• Select the correct one when replacing the tapered roller bearing - item 31 - and the output shaft - item 6 -. Refer to => [ Selecting the Lock Ring ] Output Shaft, 1st to 4th Gears.
33 Outer Race/Tapered Roller Bearing
• Removing, refer to => [ Removing the Outer Race/Tapered Roller Bearing from the Transmission Housing ] Output Shaft, 1st to 4th Gears.
• Installing, refer to => [ Installing the Outer Race/Tapered Roller Bearing into the Transmission Housing ] Output Shaft, 1st to 4th Gears.
34 Adjusting Shim
• Selecting the correct shim thickness, refer to => [ Output Shaft, 1st to 4th Gears, Adjusting ] Output Shaft, 1st to 4th Gears, Adjusting.
35 Transmission Housing
